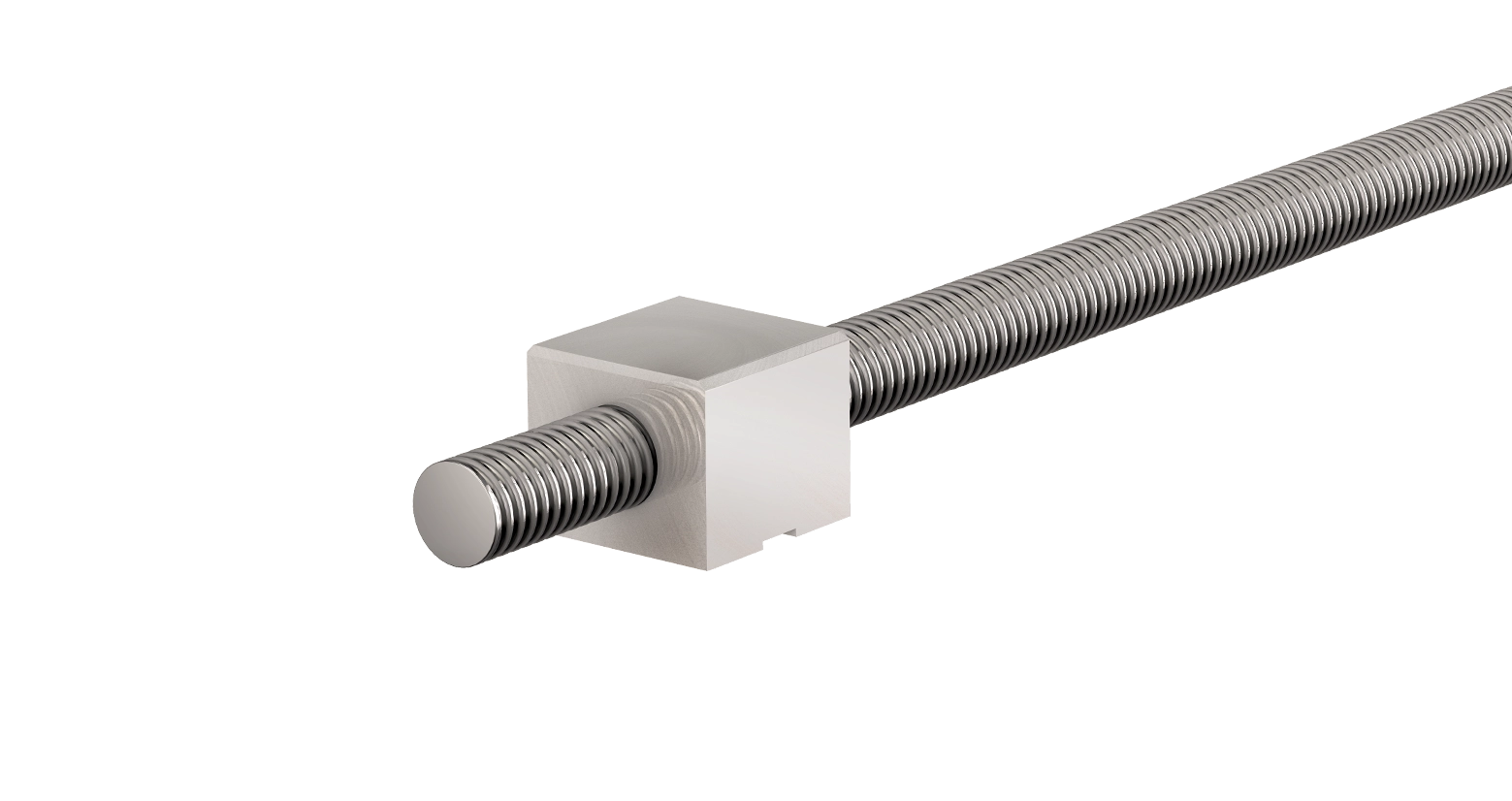

Ground Ball Screw BSR0601AP5G-0100-SQS-NND-NNN-N Square Nut, 6mm Dia. x 1mm Lead, Length: 100mm
Ground Ball Screw 100mm long, 6mm diameter, 1mm lead is made using a square nut and ground to a Grade 5 accuracy for accurate, repeatable positioning in general-purpose automation applications. Choose a ground ball screw for applications requiring high positioning accuracy, minimal backlash, and smooth, repeatable linear motion to exactly fit your application needs.
- Length: 100mm
- Diameter: 6mm
- Lead: 1mm
- Nut Style: Square Nut
- Accuracy Grade: Grade 5
- Dynamic Load Rating (Ca): 560 N
- Static Load Rating (C0a): 950 N
