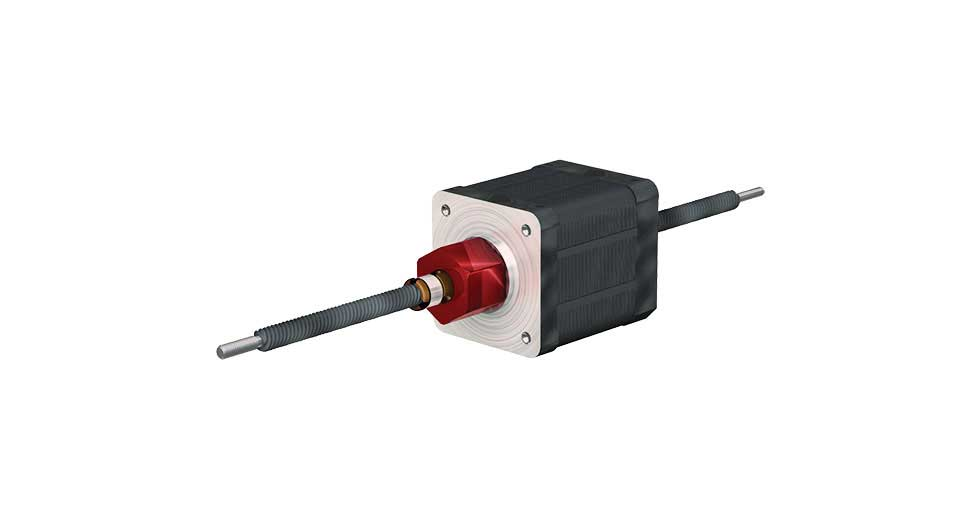

Lead Screw Linear Actuator - LSR18050T-08.00-NCF111-NNN-NNN Length: 8" NEMA 11 Motor Non-Captive
Non-Captive Lead Screw Linear Actuator 8 inches long with a NEMA 11 Motor, Round Anti-Backlash Nut, 3/16 inch screw diameter, 0.5" lead, with the screw made from precision-rolled 300 Series Stainless Steel and coated with PTFE to prevent flaking. The Round Constant Force™ Anti-Backlash nut uses a spring to maintain uniform radial pressure, reducing backlash by 2-4 times over its lifespan. Choose a non-captive lead screw actuator when space is limited, as it allows the lead screw to pass completely through the motor
- Length: 8 inches
- Screw Diameter: 3/16 inch
- Lead: 0.5"
- Nut Type: Round Constant Force™ Anti-Backlash Nut
- Motor: NEMA 11
- Coating: PTFE (over stainless steel)
- Backlash Reduction: 2-4 times
- Thread Direction: Right Hand - Clockwise
- Lead Accuracy: 0.003"/ft (76 µm/300 mm)
ASY LD SCR NUT LS 3/16 x 0.50x8 08.00in
