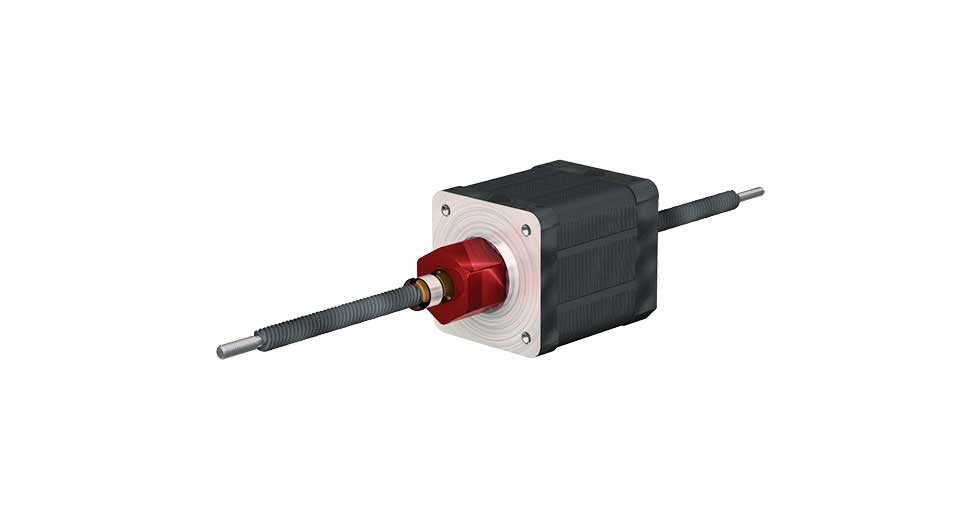

Lead Screw Linear Actuator - LSR18005T-08.00-NCF111-NNN-NNN Length: 8" Non-Captive NEMA 11 Motor

Non-Captive Lead Screw Linear Actuator with a NEMA 11 Motor. The Lead Screw has a Round Anti-Backlash Nut with a 3/16 inch diameter, 0.05" lead, and a length of 8 inches, and is made from precision-rolled 300 Series Stainless Steel, coated with PTFE to prevent flaking. The Round Constant Force™ Anti-Backlash nut uses a spring to maintain uniform radial pressure, reducing backlash by 2-4 times over its lifespan. Choose a non-captive lead screw actuator when space is limited, as it allows the lead screw to pass completely through the motor.

• Length: 8 inches
• Screw Diameter: 3/16 inch
• Lead: 0.05"

• Nut Type: Round Constant Force™ Anti-Backlash Nut
• Motor: NEMA 11
• Coating: PTFE (over stainless steel)
• Backlash Reduction: 2-4 times
• Thread Direction: Right Hand - Clockwise
• Lead Accuracy: 0.003"/ft (76 µm/300 mm)
