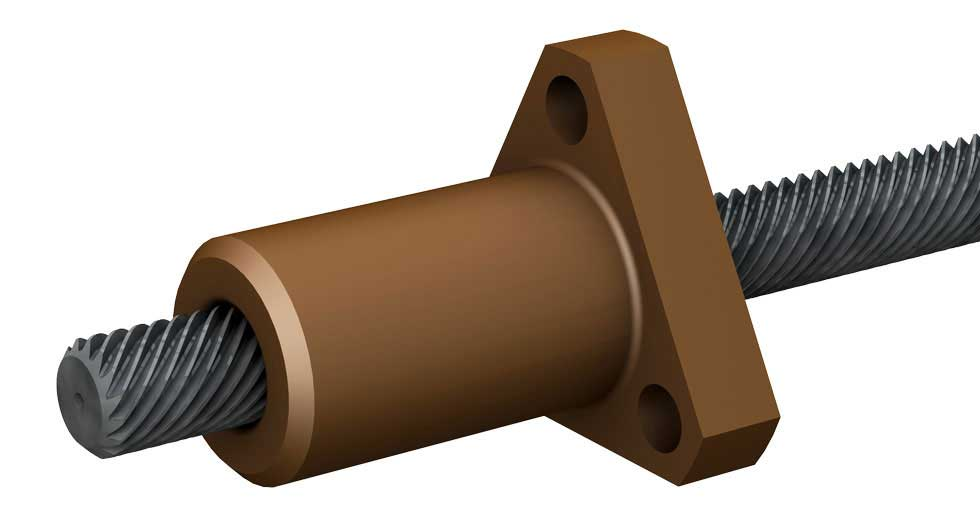

Lead Screw Assembly LSR1001T-0254-TS-NNN-NNN-N Triangular Nut

Lead screw with a standard triangle nut, 10mm diameter, 1mm lead, 254mm length, and made of precision-rolled 300 Series stainless steel coated with PTFE to reduce friction and prevent flaking. With exceptional lead accuracy of 0.003"/ft (76 µm/300 mm) and precision straightening from the only automated CNC lead screw straightening process in the USA, the lead screw exceeds industry standards with improved straightness, a smoother finish, and greater durability. The standard triangular nut (TS) provides flat mounting faces and a compact, stable shape for easy orientation, with an anti-backlash variant (TCF) available to reduce play and improve positioning stability.

• Length: 254mm
• Screw Diameter: 10mm
• Lead: 1mm

• Nut Type: Standard Triangle Nut
• Motor: No Motor
• Coating: PTFE (over stainless steel)

• Thread Direction: Right Hand - Clockwise
• Lead Accuracy: 0.003"/ft (76 µm/300 mm)

SCREW, LS 10x1
