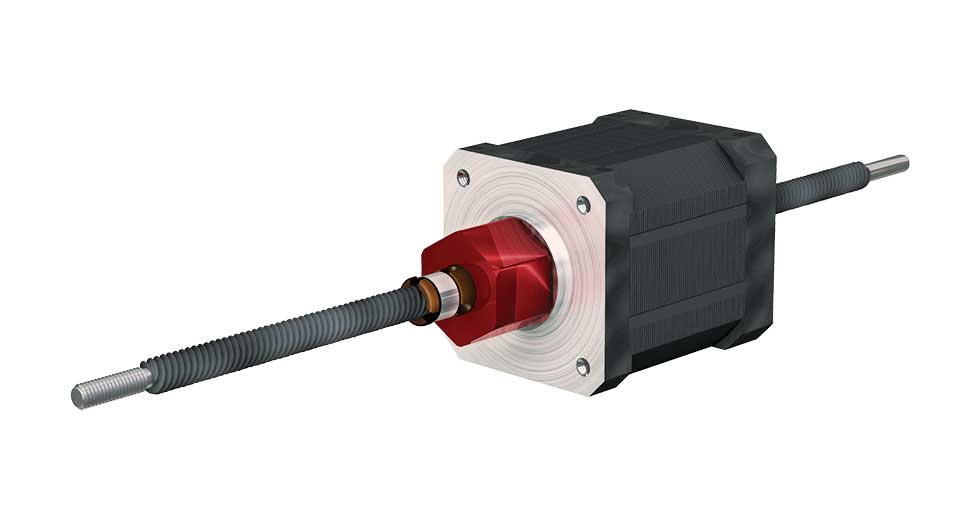

Lead Screw Linear Actuator - LSR0605T-0250-NCF171-NNN-NNN - NEMA17 Motor - Length: 250mm Non-Captive Anti-Backlash Nut
Non-Captive Lead Screw Linear Actuator 250mm long with a NEMA 17 Motor, Round Anti-Backlash Nut, 6mm screw diameter, 5mm lead, and the screw is made from precision-rolled 300 Series Stainless Steel and coated with PTFE to prevent flaking. The Round Constant Force™ Anti-Backlash nut uses a spring to maintain uniform radial pressure, reducing backlash by 2-4 times over its lifespan. Choose a non-captive lead screw actuator when space is limited, as it allows the lead screw to pass completely through the motor
- Length: 250mm
- Screw Diameter: 6mm
- Lead: 5mm
- Nut Type: Round Constant Force™ Anti-Backlash Nut
- Motor: NEMA 17
- Coating: PTFE (over stainless steel)
- Backlash Reduction: 2-4 times
- Thread Direction: Right Hand - Clockwise
- Lead Accuracy: 0.003"/ft (76 µm/300 mm)
ASY LD SCR NUT LS 6x5x5 0250mm NCF
