Integral-V Linear Guides | V-Rails with V-Wheel Carriages
V-Rail Linear Guides: IVTAAQ Series
Integral-V Linear Rail - IVTAAQR-1600-000 Length: 1600mm

Integral-V Linear Rail - IVTAAQR-1600-000 Length: 1600mm

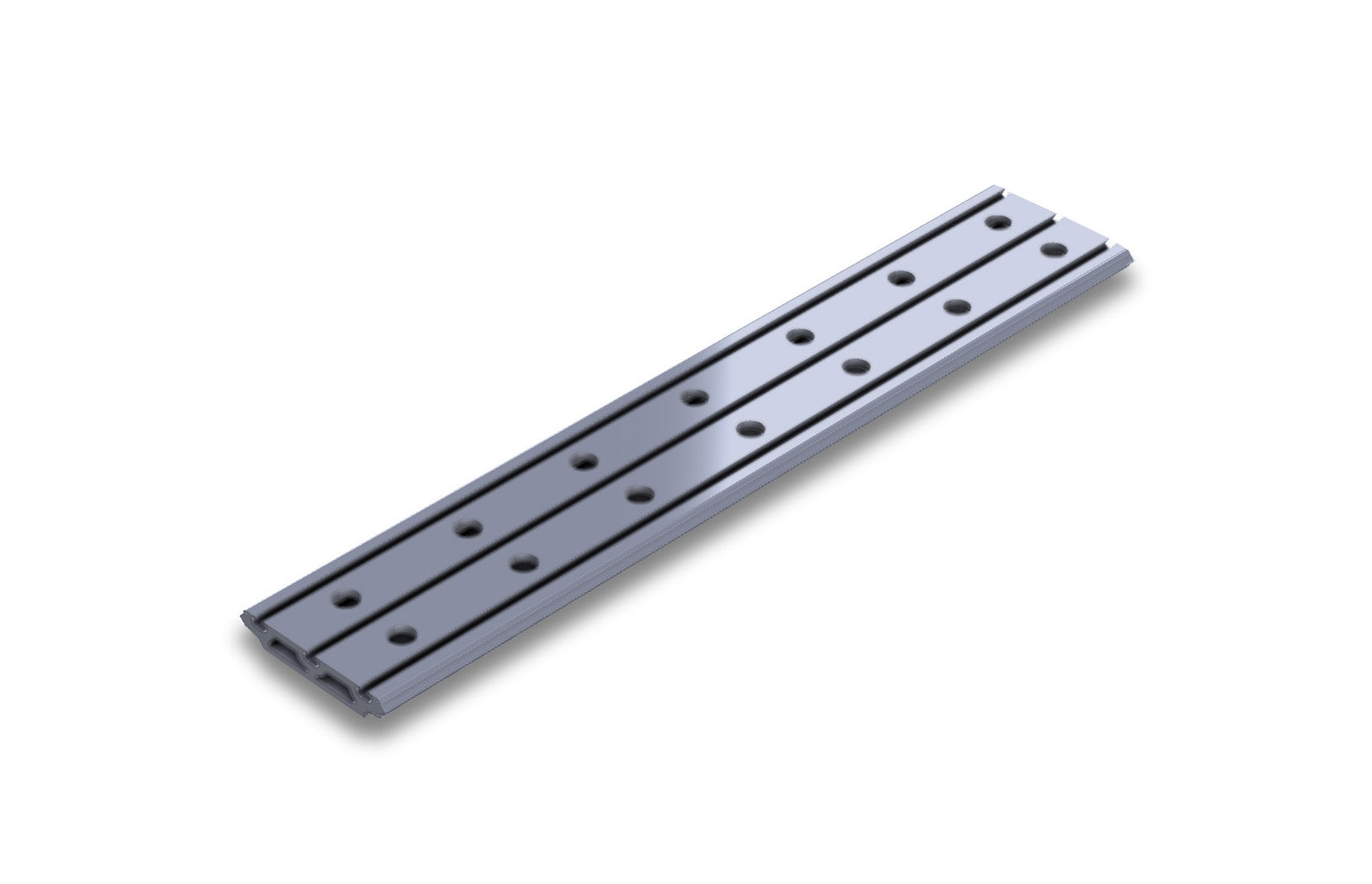

Integral-V Linear Rail IVTAAQR-1600-000, a 1600mm anodized aluminum rail with hardened stainless steel V-raceways embedded directly into the rail profile. Compatible with IVTAAQC-A20A0 carriage.

  • Compatible carriage: IVTAAQC-A20A0
  • Rail length: 1600mm | Max rail length: 3,657 mm
  • Hardened stainless steel V-raceways embedded in anodized aluminum
  • Eliminates fasteners — 40% fewer mounting components
  • End treatment: saw cut and deburr | Standard version
  • Specify Y-dimension (hole to end) at time of order
  • Rail only — carriage sold separately

PDF View Catalog

3D Models

TypeFileFormatLink
3dIVTAAQR-1600-000.x_tSolidWorks >=2006View
cadIVTAAQR-1600-000.stepSTEP AP214Download
$412.88
Configure Custom Length

Max Length: 3,657 mm

Ask about this product
Chat Now
Dimensions
Videos
Resources

Product Dimensions

Approx. Weightlength
10.794 lbs1600 mm
