Integral-V Linear Guides | V-Rails with V-Wheel Carriages
IVTAAB V-Rail Linear Guide
Integral-V Linear Rail - IVTAABR-0450-000 Length: 450mm

Integral-V Linear Rail - IVTAABR-0450-000 Length: 450mm

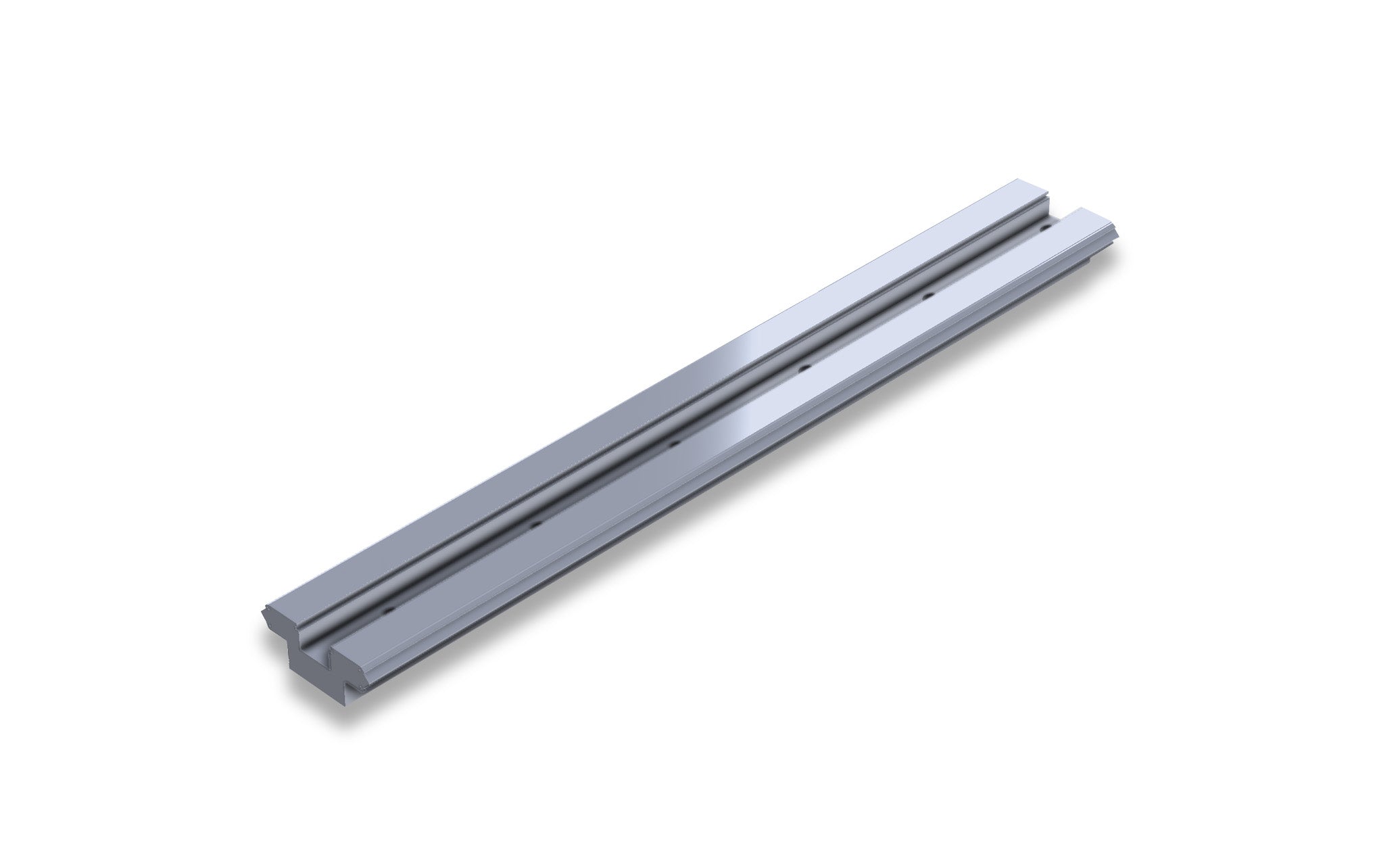

Integral-V Linear Rail IVTAABR-0450-000, a 450mm anodized aluminum rail with hardened stainless steel V-raceways embedded directly into the rail profile. Compatible with IVTAABC-A20A0 carriage.

  • Compatible carriage: IVTAABC-A20A0
  • Rail length: 450mm | Max rail length: 3,048 mm
  • Hardened stainless steel V-raceways embedded in anodized aluminum
  • Eliminates fasteners — 40% fewer mounting components
  • End treatment: saw cut and deburr | Standard version
  • Specify Y-dimension (hole to end) at time of order
  • Rail only — carriage sold separately

PDF View Catalog

3D Models

TypeFileFormatLink
3dIVTAABR-0450-000.x_tSolidWorks >=2006View
cadIVTAABR-0450-000.stepSTEP AP214Download
$141.49
Configure Custom Length

Max Length: 3,048 mm

Ask about this product
Chat Now
Dimensions
Videos
Resources

Product Dimensions

Approx. Weightlength
2.748 lbs450 mm
