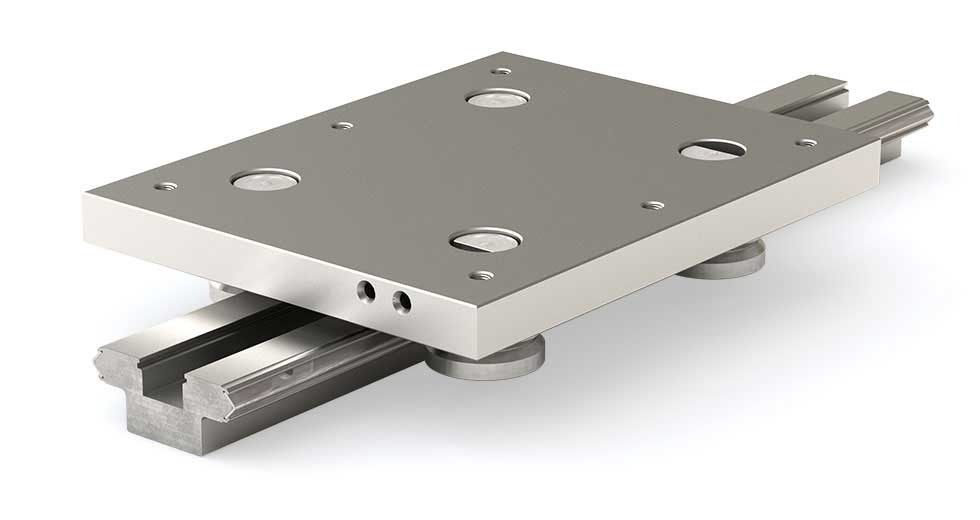

IVTAAB V-Rail Linear Guide
- Maximum Horizontal Static Load: 1,250 lb (5,560 N)
- Max Speed: 10 m/s (394 in/s)
- Max Rail Length: 3,048 mm (120 in)
- Rollers: Sealed & Lubricated for Life
- Rail Width: 65 mm
- Carriage Length: 225 mm (8.86 in)
IVTAAB Linear Guide Rails provide a wider base rail option for the IVT family that can easily integrate a variety of drive options. Composed of a precision machined aluminum anodized rail with embedded hardened stainless steel races, the IVTAAB Linear Guide is lightweight without sacrificing strength.
The embedded stainless steel races also work to eliminate fasteners and reduce mounting components.
V-Rail Linear Guide System of the IVTAAB series featuring v-wheel rollers and a wider base rail option for easy integration with various drive types. Precision-machined anodized aluminum rail with hardened embedded 420 stainless steel raceways reduces mounting components by up to 50%. SIMO® machined rail surfaces achieve precision within .002". Optimized extrusion design provides a large-scale structural member for high load capacities. Accurate, repeatable, smooth, and quiet operation. Carriages equipped with sealed, lubricated-for-life v-wheel rollers. Carriage length: 225 mm (8.86 in). Continuous rail lengths up to 3,048 mm (120 in).
- For custom first hole offset, please configure
Filter
Cut to any length -- enter one to configure it. Maximum 3048 mm.
Products (4)
| Name | Type | Length (mm) | Width (mm) | Dynamic Radial Load (N) | Price | Actions |
|---|---|---|---|---|---|---|
| IVTAABC-A20A0 | Carriage | 225 | 175 | 10020 | $338.30 | Shop |
| IVTAABR-1200-000 | Rail | 1200 | 65 | - | $377.32 | Shop |
| IVTAABR-0800-000 | Rail | 800 | 65 | - | $251.54 | Shop |
| IVTAABR-0450-000 | Rail | 450 | 65 | - | $141.49 | Shop |
| Custom Length | Rail | mm | 65 | - | - | Configure |
AAB Linear Guide
|
Recommended Mounting Frame (when mounted to aluminum extrusion) |
||
|---|---|---|
| Frame Size (Typ) | Frame T-Slot Size | Screw Length* |
| 40 x 40 | 8 | M8 x 22 mm SHCS T-Nut Part No. 6100436 |
*Recommended screw length when bolting IVT rail to structural framing via a t-nut.
RAIL
CARRIAGE
ACCESSORIES
Patented Preload Adjustment (Standard) - Side CAM Adjustable
Lubrication Accessories
1. Lube Holder
2. Wheel Cover
3. Wheel Cover and Lube Holder
UNIT DIMENSIONS
Specifications
| Series | # Rollers | Carriage Weight |
Static Load Ratings | Dynamic Load Ratings | Moments of Inertia | Rail Weight |
Max Rail Length |
|||||||||
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| Radial Foy |
Axial Foz |
Roll Mox |
Pitch Moy |
Yaw Moz |
Radial Fy |
Axial Fz |
Roll Mx |
Pitch My |
Yaw Mz |
Iy | Iz | |||||
| kg | N | N | N-M | N-M | N-M | N | N | N-M | N-M | N-M | CM4 | CM4 | kg/m | mm | ||
| IVTAAB | 4 | 2.42 | 8900 | 5560 | 171 | 348 | 556 | 10020 | 6150 | 190 | 384 | 626 | 5.5 | 25.4 | 2.77 | 3048 |
*Weight may vary slightly depending on carriage options.
Fz = Axial capacity
Fy = Radial capacity
Mx, My, Mz = Moment capacities
Conversions
newton (N) x 0.2248 = lbs.
(mm) millimeter x 0.0397 = inch
newton - meter (N-m) x 8.851 = in.-lbs.
