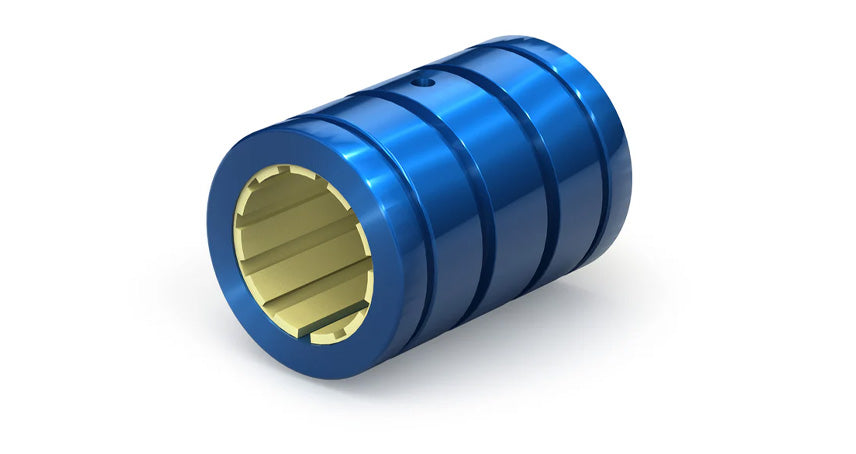

Plain Linear Bearing- EconoGlide IBM10-01 10mm Closed
Closed plain linear bearing with a 10mm ID. Encased in an anodized aluminum shell the self-lubricating, injection molded Frelon IM liner ensures maintenance-free performance. EconoGlide plain bearings are a cost-effective plain bearing solution.
- Metric Series Closed
- Max Static Load: 5,075 N
- Max Dynamic Load: 725 N
- Anodized aluminum shell (optional stainless steel)
- Frelon IM Liner: grease impregnated polymer material
- Temperature Rating: -58ºF/+194ºF (-50ºC/+90ºC)
- Vibration Damping: Ensures smooth and quiet operation
- Straight outer diameter
- Channels on the inner diameter funnel dust away from the shaft surface
