Linear Bearings
EconoGlide Plain Linear Bearings
EconoGlide Plain Linear Bearings – Closed
EconoGlide Plain Linear Bearings – Closed

EconoGlide Plain Linear Bearings – Closed

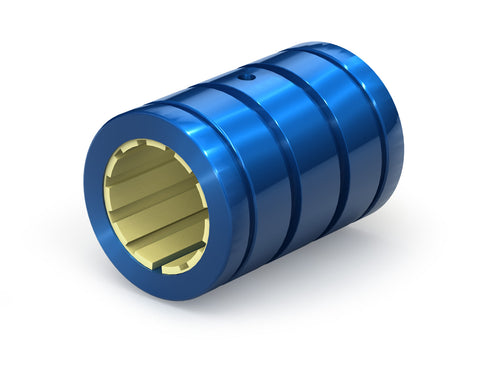

EconoGlide® plain bearings from PBC Linear® provide a self-lubricating, maintenance-free linear motion solution. The cost-sensitive solution provides quiet operation, corrosion resistance, and dependable performance in dusty or lightly contaminated environments. Designed as an alternative to linear ball bearings, EconoGlide bearings utilize a Frelon IM liner. The liner undergoes a transfer process that forms a thin lubrication film on the shaft for consistent low-friction motion over the life of the bearing.

More About EconoGlide Plain Linear Bearings – Closed

Ways to Order

Custom Features Get A Quote
Catalog Preview
Download PDF Download PDF Video Video

EconoGlide Plain Linear Bearings – Closed

16 products
QUICK SHIP
PRICE
PRODUCT TYPE
UNIT SYSTEM
DIAMETER
No Matches
BEARING ALIGNMENT
BEARING PRECISION
BEARING STYLE
BEARING TYPE
LINER MATERIAL
FOR SHAFT MATERIAL
No Matches
BEARING MATERIAL
Close filters
Filter
16 products
Low Cost Plain Linear Bearing- EconoGlide IB08-01 - 1/2” Closed

Low Cost Plain Linear Bearing- EconoGlide IB08-01 - 1/2” Closed

$13.92

Low Cost Plain Linear Bearing- EconoGlide IB08-01 - 1/2” Closed

$13.92
Closed plain linear bearing with a 1/2" ID. Encased in an anodized aluminum shell the self-lubricating, injection molded Frelon IM liner ensures maintenance-free performance. EconoGlide plain bearings are a cost-effective plain bearing solution.
$13.92
Low Cost Plain Linear Bearing- EconoGlide IB12-01 - 3/4” Closed

Low Cost Plain Linear Bearing- EconoGlide IB12-01 - 3/4” Closed

$15.65

Low Cost Plain Linear Bearing- EconoGlide IB12-01 - 3/4” Closed

$15.65
Closed plain linear bearing with a 5/8" ID. Encased in an anodized aluminum shell the self-lubricating, injection molded Frelon IM liner ensures maintenance-free performance. EconoGlide plain bearings are a cost-effective plain bearing solution.
$15.65
Low Cost Plain Linear Bearing- EconoGlide IB06-01 - 3/8” Closed

Low Cost Plain Linear Bearing- EconoGlide IB06-01 - 3/8” Closed

$13.05

Low Cost Plain Linear Bearing- EconoGlide IB06-01 - 3/8” Closed

$13.05
Closed plain linear bearing with a 3/8" ID. Encased in an anodized aluminum shell the self-lubricating, injection molded Frelon IM liner ensures maintenance-free performance. EconoGlide plain bearings are a cost-effective plain bearing solution.
$13.05
Low Cost Plain Linear Bearing- EconoGlide IB10-01 - 5/8” Closed

Low Cost Plain Linear Bearing- EconoGlide IB10-01 - 5/8” Closed

$14.43

Low Cost Plain Linear Bearing- EconoGlide IB10-01 - 5/8” Closed

$14.43
Closed plain linear bearing with a 5/8" ID. Encased in an anodized aluminum shell the self-lubricating, injection molded Frelon IM liner ensures maintenance-free performance. EconoGlide plain bearings are a cost-effective plain bearing solution.
$14.43
Low Cost Plain Linear Bearing- EconoGlide IB16-01 - 1” Closed

Low Cost Plain Linear Bearing- EconoGlide IB16-01 - 1” Closed

$28.56

Low Cost Plain Linear Bearing- EconoGlide IB16-01 - 1” Closed

$28.56
Closed plain linear bearing with a 1" ID. Encased in an anodized aluminum shell the self-lubricating, injection molded Frelon IM liner ensures maintenance-free performance. EconoGlide plain bearings are a cost-effective plain bearing solution.
$28.56
Low Cost Plain Linear Bearing- EconoGlide IB24-01 - 1.5” Closed

Low Cost Plain Linear Bearing- EconoGlide IB24-01 - 1.5” Closed

$55.81

Low Cost Plain Linear Bearing- EconoGlide IB24-01 - 1.5” Closed

$55.81
Closed plain linear bearing with a 1.5" ID. Encased in an anodized aluminum shell the self-lubricating, injection molded Frelon IM liner ensures maintenance-free performance. EconoGlide plain bearings are a cost-effective plain bearing solution.
$55.81
Low Cost Plain Linear Bearing- EconoGlide IB20-01 - 1.25” Closed

Low Cost Plain Linear Bearing- EconoGlide IB20-01 - 1.25” Closed

$48.24

Low Cost Plain Linear Bearing- EconoGlide IB20-01 - 1.25” Closed

$48.24
Closed plain linear bearing with a 1.25" ID. Encased in an anodized aluminum shell the self-lubricating, injection molded Frelon IM liner ensures maintenance-free performance. EconoGlide plain bearings are a cost-effective plain bearing solution.
$48.24
Low Cost Plain Linear Bearing- EconoGlide IB32-01 - 2” Closed

Low Cost Plain Linear Bearing- EconoGlide IB32-01 - 2” Closed

$97.35

Low Cost Plain Linear Bearing- EconoGlide IB32-01 - 2” Closed

$97.35
Closed plain linear bearing with a 2" ID. Encased in an anodized aluminum shell the self-lubricating, injection molded Frelon IM liner ensures maintenance-free performance. EconoGlide plain bearings are a cost-effective plain bearing solution.
$97.35
Plain Linear Bearing- EconoGlide IBM50-01 50mm Closed

Plain Linear Bearing- EconoGlide IBM50-01 50mm Closed

$106.04

Plain Linear Bearing- EconoGlide IBM50-01 50mm Closed

$106.04
Closed plain linear bearing with a 50mm ID. Encased in an anodized aluminum shell the self-lubricating, injection molded Frelon IM liner ensures maintenance-free performance. EconoGlide plain bearings are a cost-effective plain bearing solution.
$106.04
Plain Linear Bearing- EconoGlide IBM40-01 40mm Closed

Plain Linear Bearing- EconoGlide IBM40-01 40mm Closed

$60.75

Plain Linear Bearing- EconoGlide IBM40-01 40mm Closed

$60.75
Closed plain linear bearing with a 40mm ID. Encased in an anodized aluminum shell the self-lubricating, injection molded Frelon IM liner ensures maintenance-free performance. EconoGlide plain bearings are a cost-effective plain bearing solution.
$60.75
Plain Linear Bearing- EconoGlide IBM30-01 30mm Closed

Plain Linear Bearing- EconoGlide IBM30-01 30mm Closed

$51.63

Plain Linear Bearing- EconoGlide IBM30-01 30mm Closed

$51.63
Closed plain linear bearing with a 30mm ID. Encased in an anodized aluminum shell the self-lubricating, injection molded Frelon IM liner ensures maintenance-free performance. EconoGlide plain bearings are a cost-effective plain bearing solution.
$51.63
Plain Linear Bearing- EconoGlide IBM25-01 25mm Closed

Plain Linear Bearing- EconoGlide IBM25-01 25mm Closed

$31.33

Plain Linear Bearing- EconoGlide IBM25-01 25mm Closed

$31.33
Closed plain linear bearing with a 25mm ID. Encased in an anodized aluminum shell the self-lubricating, injection molded Frelon IM liner ensures maintenance-free performance. EconoGlide plain bearings are a cost-effective plain bearing solution.
$31.33
Plain Linear Bearing- EconoGlide IBM20-01 20mm Closed

Plain Linear Bearing- EconoGlide IBM20-01 20mm Closed

$19.84

Plain Linear Bearing- EconoGlide IBM20-01 20mm Closed

$19.84
Closed plain linear bearing with a 20mm ID. Encased in an anodized aluminum shell the self-lubricating, injection molded Frelon IM liner ensures maintenance-free performance. EconoGlide plain bearings are a cost-effective plain bearing solution.
$19.84
Plain Linear Bearing- EconoGlide IBM16-01 16mm Closed

Plain Linear Bearing- EconoGlide IBM16-01 16mm Closed

$17.39

Plain Linear Bearing- EconoGlide IBM16-01 16mm Closed

$17.39
Closed plain linear bearing with a 16mm ID. Encased in an anodized aluminum shell the self-lubricating, injection molded Frelon IM liner ensures maintenance-free performance. EconoGlide plain bearings are a cost-effective plain bearing solution.
$17.39
Plain Linear Bearing- EconoGlide IBM12-01 12mm Closed

Plain Linear Bearing- EconoGlide IBM12-01 12mm Closed

$14.34

Plain Linear Bearing- EconoGlide IBM12-01 12mm Closed

$14.34
Closed plain linear bearing with a 12mm ID. Encased in an anodized aluminum shell the self-lubricating, injection molded Frelon IM liner ensures maintenance-free performance. EconoGlide plain bearings are a cost-effective plain bearing solution. Metric Series Closed Max Static Load: 6,720 N Anodized aluminum shell (optional stainless steel) Frelon IM Liner:..
$14.34
Plain Linear Bearing- EconoGlide IBM10-01 10mm Closed

Plain Linear Bearing- EconoGlide IBM10-01 10mm Closed

$13.75

Plain Linear Bearing- EconoGlide IBM10-01 10mm Closed

$13.75
Closed plain linear bearing with a 10mm ID. Encased in an anodized aluminum shell the self-lubricating, injection molded Frelon IM liner ensures maintenance-free performance. EconoGlide plain bearings are a cost-effective plain bearing solution.
$13.75

EconoGlide Plain Linear Bearings – Closed

16 products

Closed-shell plain linear bearings from the EconoGlide line feature a self-lubricating Frelon IM liner for maintenance-free operation. Available in inch (3/8" to 2") and ISO metric (10 mm to 50 mm), they are designed for end-supported shafting, with static load capacities up to 20,198 lb (89.85 kN) and speeds up to 1.5 m/s. Interchangeable with many linear ball bearings and some bronze bushings, they are well suited for heavy-load applications involving linear, rotational, or oscillating motion.

EconoGlide closed bearings offer oil-free operation, vibration damping for smooth and quiet motion. Optional external lubrication and various mounting options, such as O-ring and retaining ring grooves, enhance their versatility.

•    Temperature Rating: -58ºF/+194ºF (-50ºC/+90ºC).
•    ID Sizes: Available from 3/8” to 2” Inch Series, 10mm to 50mm Metric Series
•    Static Load Capacities up to 20,198 lb (89.85 kN)
•    Maximum Speed: Up to 1.5 m/s
•    Shell Material: Anodized aluminum
•    Self-Lubricating: Provides oil-free operation
•    Mounting Options: O-ring and retaining ring grooves for multiple mounting options
•    Vibration Damping: Ensures smooth and quiet operation
•    Designed for use with end-supported shafting or linear rail supported shafts
•    Interchangeable with linear ball bearings and some bronze bushings
