Compact Linear Slide Actuator - Lead Screw Drive CSMR15D-000-0200-1Z0-AGXR2-0 Blank Motor Plate - Length: 200mm

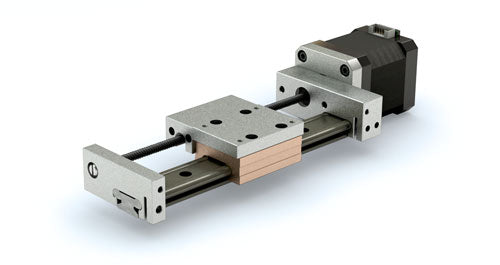

Compact linear slide actuator with a 6x2x200mm lead screw drive (6mm screw diameter, 2mm lead, and 200mm rail length). Its low-profile 23mm height accommodates confined spaces, while a blank motor plate allows integration with a customer-supplied drive system. Rotation of the lead screw moves a carriage along an anodized aluminum rail to move and accurately position loads. A Constant Force Technology™ anti-backlash nut minimizes axial play for improved positioning repeatability. The carriage incorporates PBC Linear's Gliding Surface Technology (GST), featuring a self-lubricating FrelonGold® PTFE liner that eliminates metal-to-metal contact while reducing friction, wear, and maintenance. This plain bearing design operates reliably under temperature extremes, particulates, and vibration.

• Compact lead screw-driven linear slide for moving and accurately positioning loads
• Blank motor plate for integration with a customer-supplied drive system
• Lead screw diameter: 6mm
• Screw lead: 2mm
• Rail length: 200mm
• Maximum stroke: 135mm
• Low-profile height: 23mm
• Right-hand screw thread
• Single carriage
• Anodized aluminum linear rail
• Constant Force Technology™ anti-backlash nut minimizes axial play
• Gliding Surface Technology (GST) plain bearing carriage
• Self-lubricating FrelonGold® PTFE liner reduces friction, wear, and maintenance
• No metal-to-metal contact between carriage and rail
• Reliable operation under temperature extremes, particulates, and vibration
• CNC precision-rolled lead screw with 0.003in/ft (76µm/300mm) lead accuracy
• Optional profile rail increases rigidity and supports cantilevered loads
• Applications: Laboratory automation, medical equipment and robotics
