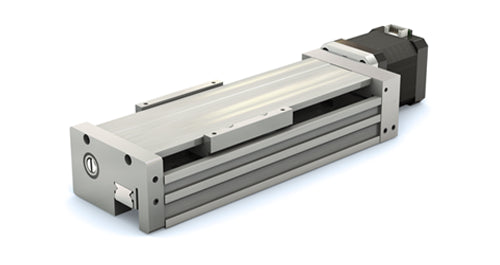

Compact Lead Screw Linear Actuator CSLSM10AGXR1ZF-2LT-0130-0 w/ NEMA 17 Motor Mount - Length: 130mm

  • Guidance: Profile rail, recirculating ball
  • Lead Screw: 10 mm dia. × 2 mm lead
  • Nut: Anti-Backlash
  • Rail Length: 130 mm
  • MAX Stroke: 50 mm
  • MAX Horizontal Load: 1,425 N (320 lb)
  • Width: 67.5 mm
  • Height: 39.04 mm
  • Cover: Tall profile
  • Drive End: Shaft
Compact lead screw-driven linear actuator with a  NEMA17 motor mount and 10x2x130mm configuration (10mm screw diameter, 2mm lead, and 130mm rail length). The lead screw moves and accurately positions loads along a ball bearing profile rail. The recirculating ball bearing carriage provides greater rigidity and cantilevered load support than Gliding Surface Technology (GST).
$776.78
Configure Custom Features
Contact
Details
Dimensions
Media
Charts
Resources

Product Details

Part Number CSLSM10AGXR1ZF-2LT-0130-0
Series CS Compact Series
Product Type Compact Lead Screw Linear Actuator
Max Horizontal Load 1425(N)
Max Stroke 50.00mm
Screw Type Lead Screw
Screw Diameter 10mm
Screw Lead 2mm
Thread Direction Right
Drive End Option Shaft
Motor Option NEMA17 Motor Mount
Nut Anti-Backlash Nut
Carriage Type Profile Rail
Cover Tall
Rail Length 130mm
Num Of Carriages 1
Approx. WeightWidthLengthHeight
1.92 lbs67.5 mm130 mm39.04 mm

*For complete dimensions see tab
