Linear Guides
Plain Linear Bearing Guides with Two Rail Supported Shafts
Linear Bearing Slide Assembly - Linear Guide

Plain Linear Bearing Guides with Two Rail Supported Shafts

Linear bearing slide assemblies featuring two rail-supported alloy steel shafts on which four Simplicity® plain linear bearing pillow blocks glide, supporting a flat-top carriage. The bearings are lined with self-lubricating FrelonGOLD® for maintenance-free performance in harsh conditions like extreme heat, dirt, and vibration. The shafts in this product line range from 0.5" to 2" and the rails they are mounted on are pre-drilled for easy mounting. Optional shaft materials include anodized aluminum, 440 stainless steel, chrome-plated 303 stainless steel. Optional liners include Frelon® J for corrosive environments and FDA-compliant Frelon® W.  High and low profile variants of the self-centering carriages enable precise, durable operation without external lubrication.

More About Plain Linear Bearing Guides with Two Rail Supported Shafts

Ways to Order

Custom Features Get A Quote
Catalog Preview
Web Catalog Web Catalog Download PDF Download PDF Video Video

Plain Linear Bearing Guides with Two Rail Supported Shafts

42 products
PRICE
PRODUCT TYPE
UNIT SYSTEM
DIAMETER
No Matches
BEARING STYLE
BEARING TYPE
LINER MATERIAL
MATERIAL
ACTUATOR TYPE
Close filters
Filter
42 products
Linear Actuator - Simplicity RPS Series RPS-1000-024-000 Shaft Diameter: 5/8" Shaft Material: Alloy Steel Rail Length: 024.000"

Plain Linear Bearing Guide RPS-1000-024-000 Two Steel Shafts on Rails - Diameters: 5/8..

$1,359.15

Plain Linear Bearing Guide RPS-1000-024-000 Two Steel Shafts on Rails - Diameters: 5/8" Lengths: 24"

$1,359.15

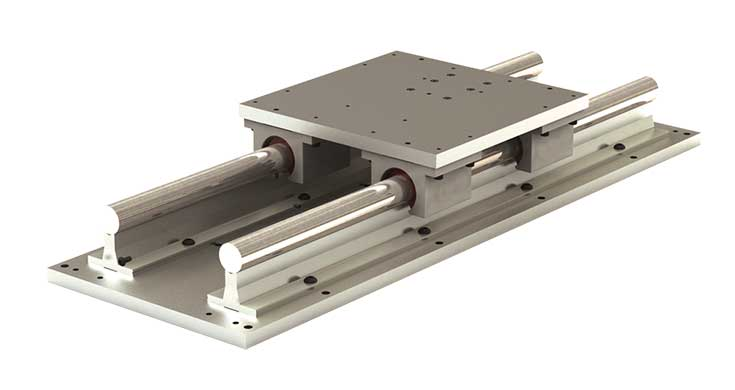

Heavy-duty linear slide with two 24" parallel rail-supported 5/8" diameter shafts and a flat carriage plate riding on four sliding Simplicity® plain linear bearing pillow blocks. This linear guide assembly provides smooth, stable long-travel motion with excellent rigidity, vibration dampening, and shock resistance. Self-lubricating FrelonGOLD® liners deliver oil-free, maintenance-free operation..
$1,359.15
Linear Actuator - Simplicity RPS Series RPS-0800-024-000 Shaft Diameter: 1/2" Shaft Material: Alloy Steel Rail Length: 024.000"

Plain Linear Bearing Guide RPS-0800-024-000 Two Steel Shafts on Rails - Diameters: 1/2..

$1,121.16

Plain Linear Bearing Guide RPS-0800-024-000 Two Steel Shafts on Rails - Diameters: 1/2" Lengths: 24"

$1,121.16
Heavy-duty linear slide with two 24" parallel rail-supported 1/2" diameter shafts and a flat carriage plate riding on four sliding Simplicity® plain linear bearing pillow blocks. This linear guide assembly provides smooth, stable long-travel motion with excellent rigidity, vibration dampening, and shock resistance. Self-lubricating FrelonGOLD® liners deliver oil-free, maintenance-free operation..
$1,121.16
42 products

Plain Linear Bearing Guides with Two Rail Supported Shafts

42 products

Linear bearing slide assemblies featuring two rail-supported alloy steel shafts on which four Simplicity® plain linear bearing pillow blocks glide, supporting a flat-top carriage. The bearings are lined with self-lubricating FrelonGOLD® for maintenance-free performance in harsh conditions like extreme heat, dirt, and vibration. The shafts in this product line range from 0.5" to 2" and the rails they are mounted on are pre-drilled for easy mounting. Optional shaft materials include anodized aluminum, 440 stainless steel, chrome-plated 303 stainless steel. Optional liners include Frelon® J for corrosive environments and FDA-compliant Frelon® W. High and low profile variants of the self-centering carriages enable precise, durable operation without external lubrication.


  • Maximum rail lengths: 2440 mm (96 in)
  • Maximum carriage speeds: 0.457 m/s (18 in/s)
  • Maximum carriage loads: 83,000 N (18,750 lbf)
  • Tolerates and dampens vibration
