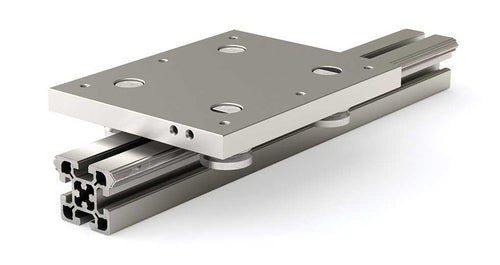

IVTAAG Linear Guide
- Maximum Horizontal Static Load: 1,250 lb (5,560 N)
- Max Speed: 10 m/s (394 in/s)
- Max Rail Length: 3,650 mm (143.7 in)
- Rollers: Sealed & Lubricated for Life
- Rail Width: 65 mm
- Carriage Length: 225 mm (8.86 in)
IVTAAG Linear Guide Rail eliminates tolerance stack-up with precision qualified edges for high accuracy and quick alignment. Composed of a precision machined aluminum anodized rail with embedded hardened stainless steel races, the IVTAAG Linear Guide is lightweight without sacrificing strength and integrates easily with standard aluminum extrusion framing systems.
The embedded stainless steel races also work to eliminate fasteners and reduce mounting components. The rail is machined for precise mounting and alignment on all critical sides, ensuring dimensional and rail form accuracy. IVTAAG carriages are available with a wide variety of accessory options for your specific application.
- Precision-machined anodized aluminum rail with hardened embedded 420 stainless steel raceways reduce mounting components by up to 50%
- SIMO® machined for precision qualified rail surfaces within .002"
- Optimized extrusion design provides a large-scale structural member designed for high load capacities
- Accurate and repeatable with smooth and quiet operation
- For custom first hole offset, please configure
Filter
Cut to any length -- enter one to configure it. Maximum 3657 mm.
Products (4)
| Name | Type | Length (mm) | Width (mm) | Dynamic Radial Load (N) | Price | Actions |
|---|---|---|---|---|---|---|
| IVTAAGR-1200-000 | Rail | 1200 | 65 | - | $243.98 | Shop |
| IVTAAGR-0800-000 | Rail | 800 | 65 | - | $162.66 | Shop |
| IVTAAGR-0450-000 | Rail | 450 | 65 | - | $91.49 | Shop |
| IVTAABC-A20A0 | Carriage | 225 | 175 | 10020 | $338.30 | Shop |
| Custom Length | Rail | mm | 65 | - | - | Configure |
AAG Linear Guide
|
Recommended Mounting Frame (when mounted to aluminum extrusion) |
||
|---|---|---|
| Frame Size (Typ) | Frame T-Slot Size | Screw Length* |
| N/A | N/A | N/A |
RAIL
CARRIAGE
ACCESSORIES
Patented Preload Adjustment (Standard) - Side CAM Adjustable
Lubrication Accessories
1. Lube Holder
2. Wheel Cover
3. Wheel Cover and Lube Holder
** Wheel accessories extend below base of rail.
Check for clearance or install spacer to base of rail to achieve needed clearance.
UNIT DIMENSIONS
Specifications
| Series | # Rollers | Carriage Weight |
Static Load Ratings | Dynamic Load Ratings | Moments of Inertia | Rail Weight |
Max Rail Length |
|||||||||
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| Radial Foy |
Axial Foz |
Roll Mox |
Pitch Moy |
Yaw Moz |
Radial Fy |
Axial Fz |
Roll Mx |
Pitch My |
Yaw Mz |
Iy | Iz | |||||
| kg | N | N | N-M | N-M | N-M | N | N | N-M | N-M | N-M | CM4 | CM4 | kg/m | mm | ||
| IVTAAG | 4 | 2.42 | 8900 | 5560 | 171 | 348 | 556 | 10020 | 6150 | 190 | 384 | 626 | 29.7 | 34.9 | 3.36 | 3657 |
*Weight may vary slightly depending on carriage options.
AAG and AAB type rails use the same carriage.
Fz = Axial capacity
Fy = Radial capacity
Mx, My, Mz = Moment capacities
Conversions
newton (N) x 0.2248 = lbs.
(mm) millimeter x 0.0397 = inch
newton - meter (N-m) x 8.851 = in.-lbs.
