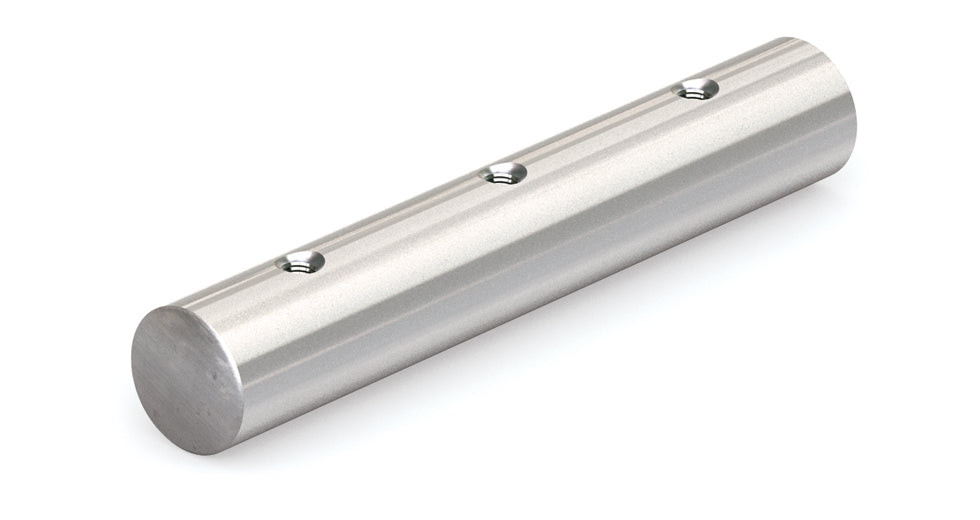

Pre-Drilled Linear Shaft - Carbon Steel - NIPDM40-0300-SL Diameter: 40mm Length: 300mm

Description

Pre-Drilled Linear Shaft of 1060 Carbon Steel with a 40mm diameter and 300mm length, rated Class L for top-tier precision tolerance and standards compliance, and featuring Simplicity® RC 60 Plus Hardness™. Pre-drilled with industry-standard hole spacing, but no tapping has been done. Click Configure CAD and Quote for tapping or custom lengths. Optimized for Simplicity® self-lubricating plain bearings, linear ball bearings, and roller bearing pillow blocks.

Simplicity® RC 60 Plus Case Hardened™ Steel Shafting
Pre-Drilled hole spacing is according to industry standards
Not Tapped - Click Configure CAD & Quote below for tapping and custom lengths
Length tolerance:

3/16" – 1-1/4" shaft = +/- 0.030"
1-3/8" – 2" shaft = +/- 0.060"
2-1/2" – 4" shaft = +/- 0.125"
