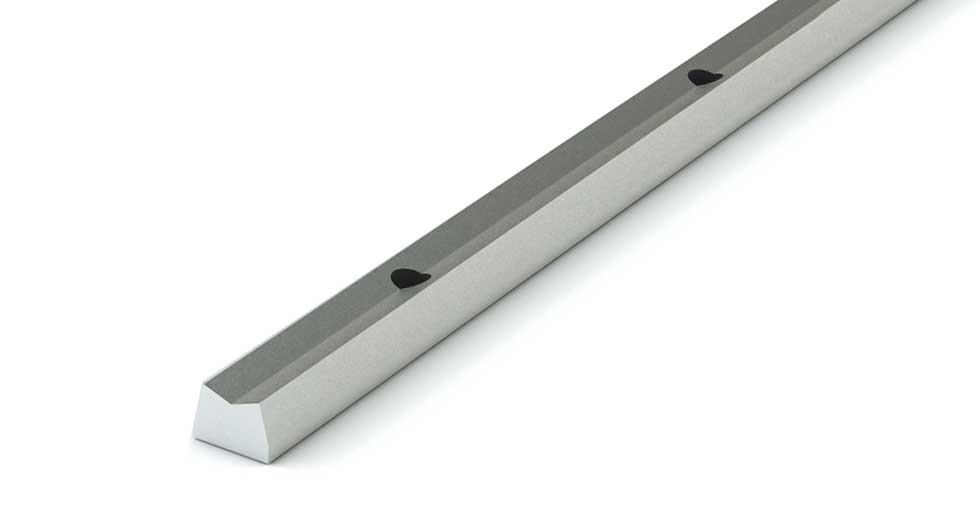

Low Support Rail for 1.5″ Shafts - Carbon Steel - LSR24PD-024.000-SL Length: 24″ Pre-Drilled

Pre-Drilled Low Profile Steel Linear Support Rail for Shafts of 1.5″ Diameter. Linear rail length is 24″

  • Linear Support Rail Length: 24″ Pre-Drilled with industry standard hole spacing
  • Low Profile: 40% lower than other support rails
  • AISI C-1018 Carbon Steel (0.18% carbon w/ high strength and ductility)
  • Supports a Linear Shaft of Diameter: 1.5″
  • Consult Configuration CAD & Quote below to order custom lengths

PDF View Catalog

3D Models

TypeFileFormatLink
3dLSR24PD-024.htmlhtmlView
cadLSR24PD-024.x_tSolidWorks >=2006Download
$71.91
Configure Custom Features
Ask about this product
Dimensions
Videos
Resources

Product Dimensions

weightwidthlengthheight
1.31 lbs0 in24 in0 in
