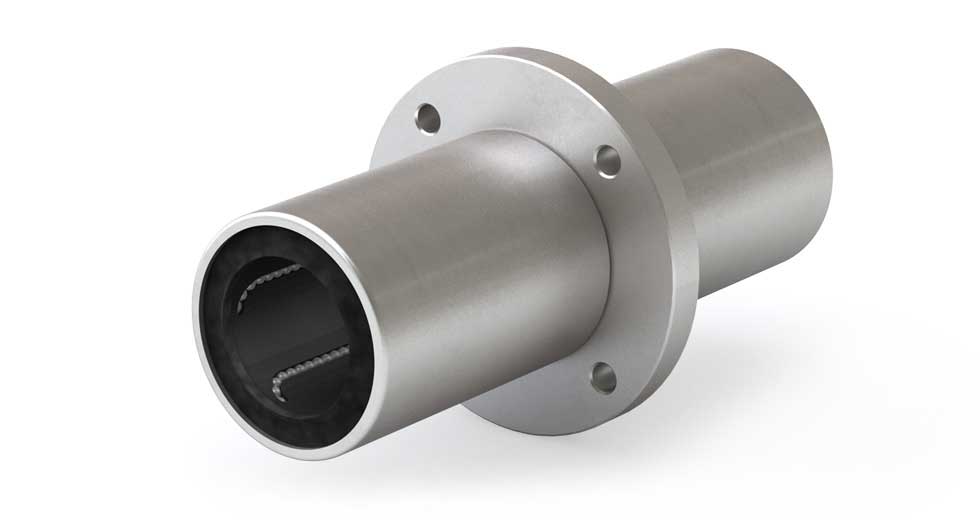

Linear Ball Bearing – Round Flanged Center Mount IPFC32G 2″ ID
This is the double-length Inch version of the linear ball bearing with a round flange at the center. Designed for shaft diameter 2", the center-mounted flange configuration provides balanced support and high resistance to moment loading.
- Nominal ID: 2"
- Nominal OD: 3"
- Shaft Diameter: 2"
- Max Static Load: 3,574 lb (15,898 N)
- Max Dynamic Load: 1,367 lb (6,081 N)
- Temperature Rating: -20°C to 80°C (-4°F to 176°F)
- Case Material: Steel shell (stainless steel available)
- Retainer: Molded polymer, recirculating hardened steel balls
- Seals: Standard double seals included
- Max Speed: Up to 8 m/s (315 in/s)
