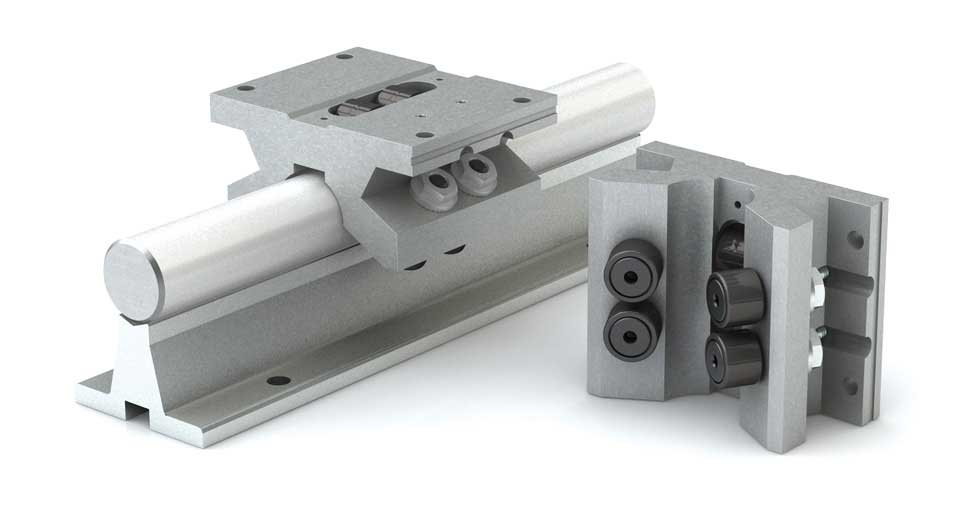

Double Roller Pillow Block DPB-08-OPN 1/2″ ID - Standard Width
Double Roller Bearing Pillow Block (DPB) for a 1/2" diameter linear shaft featuring two sets of 3 opposing roller bearings while maintaining the standard size open bearing style profile of a Single Roller Pillow Block (SPB). In contrast, a Twin Roller Pillow Block (TWN) also has two sets of 3 opposing roller bearings, but the TWN blocks are larger, resembling two SPBs fused together.
- Double the load capacity of a Single Roller Bearing (SPB) Pillow Block
- Use a floating "F" part number for each opposing block on parallel shafts. F-DPB pillow blocks offer flexibility to acccomodate imperfect alignments
- A set of opposing roller bearings consists of 1 fixed side roller, 1 eccentric side roller (to account for any misalignment) and a top support roller
- Replacement kits of the FUBK Series offer one new roller for each of the 3 rollers in a set
- Order two replacement kits to cover the 2 sets of opposing bearings for this product
