Double Plain Linear Bearings - Square Flanged, Center Mount
Plain Linear Bearing CFPJ16C 16mm JIS Metric, Square Flange Center, Double Wide, Compensated ID
$83.55
JIS Metric Double Plain Linear Bearing, Square Flanged Center Mount with a 16mm JIS Metric ID (inner diameter), a self lubricating bearing liner and a compensated running clearance of 0.0015" per side, which could favor speed over precision. Self-Lubricating Bearing Liner: FrelonGOLD® is standard Optional liners include Frelon® W (FDA..
$83.55
Plain Linear Bearing CFPJ12C 12mm JIS Metric, Square Flange Center, Double Wide, Compensated ID
$71.61
JIS Metric Double Plain Linear Bearing Square Flanged Center Mount with a 12mm JIS Metric ID (inner diameter), a self lubricating liner and a compensated running clearance of 0.0015" per side, which could favor speed over precision. Self-Lubricating Bearing Liner: FrelonGOLD® is standard Optional liners include Frelon® W (FDA compliant)..
$71.61
JIS Metric Double Plain Linear Bearing with a Square Flange Center Mount and a 13mm JIS Metric ID (inner diameter). Features a self lubricating bearing liner and a precision running clearance of 0.0005" per side. Self-Lubricating Bearing Liner: FrelonGOLD® is standard Optional liners include Frelon® W (FDA compliant) & Frelon®..
$78.51
JIS Metric Double Plain Linear Bearing, Square Flanged Center Mount with a 12mm JIS Metric ID (inner diameter), a self lubricating bearing liner and a precision running clearance of 0.0005" per side. Self-Lubricating Bearing Liner: FrelonGOLD® is standard Optional liners include Frelon® W (FDA compliant) Frelon® J Outer Shell: Anodized..
$71.61
Plain Linear Bearing CFPJ10C 10mm JIS Metric, Square Flange Center, Double Wide, Compensated ID
$70.19
JIS Metric Double Square Flanged Center Mount Plain Linear Bearing with a 10mm JIS Metric ID (inner diameter), a self lubricating liner and a compensated running clearance of 0.0015" per side, which could favor speed over precision. Self-Lubricating Bearing Liner: FrelonGOLD® is standard Optional liners include Frelon® W (FDA compliant) &..
$70.19
JIS Metric Double Plain Linear Bearing, Square Flanged Center Mount with an 8mm JIS Metric ID (inner diameter), a self lubricating bearing liner and a precision running clearance of 0.0005" per side. Self-Lubricating Bearing Liner: FrelonGOLD® is standard Optional liners include Frelon® W (FDA compliant) Frelon® J Outer Shell: Anodized..
$70.46
JIS Metric Double Plain Linear Bearing, Square Flanged Center Mount with a 10mm JIS Metric ID (inner diameter), a self lubricating liner and a precision running clearance of 0.0005" per side. Self-Lubricating Bearing Liner: FrelonGOLD® is standard Optional liners include Frelon® W (FDA compliant) Frelon® J Outer Shell: Anodized Aluminum Alloy Temperature..
$70.19
Plain Linear Bearing CFPJ08C 8mm ID JIS Metric, Square Flange Center, Double Wide, Compensated ID
$70.46
JIS Metric Double Plain Linear Bearing, Square Flanged Center Mount with an 8mm JIS Metric ID (inner diameter), a self lubricating bearing liner and a compensated running clearance of 0.0015" per side, which could favor speed over precision. Self-Lubricating Bearing Liner: FrelonGOLD® is standard Optional liners include Frelon® W (FDA..
$70.46
Plain Linear Bearing CFPJ06C 6mm JIS Metric, Square Flange Center, Double Wide, Compensated ID
$60.25
JIS Metric Double Plain Linear Bearing, Square Flanged Center Mount with a 6mm JIS Metric ID (inner diameter), a self lubricating bearing liner and a compensated running clearance of 0.0015" per side, which could favor speed over precision. Self-Lubricating Bearing Liner: FrelonGOLD® is standard Optional liners include Frelon® W (FDA..
$60.25
JIS Metric Double Plain Linear Bearing - Square Flanged Center Mount with a 6mm JIS Metric ID (inner diameter), a self lubricating bearing liner and a precision running clearance of 0.0005" per side. Self-Lubricating Bearing Liner: FrelonGOLD® is standard Optional liners include Frelon® W (FDA compliant) & Frelon® J Outer..
$60.25

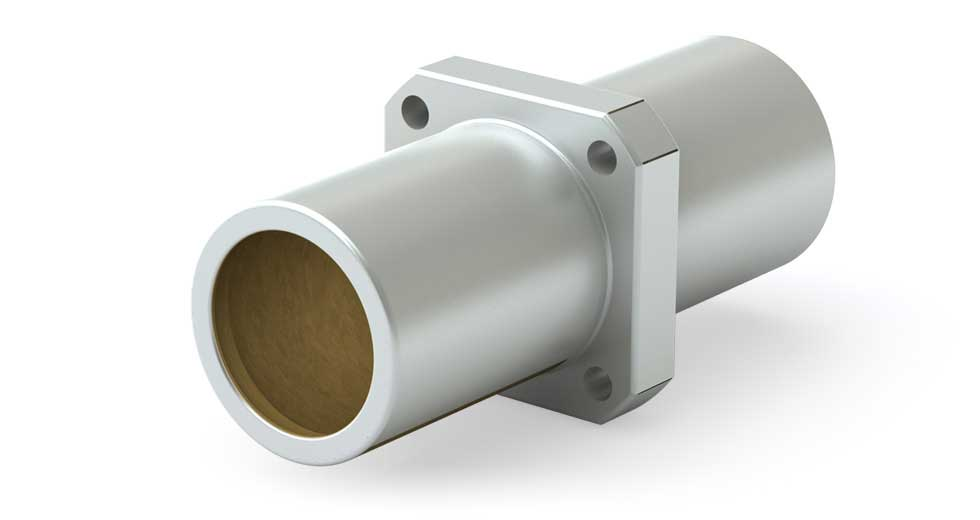

Double Plain Linear Bearing, Square Flanged Center Mount, with a 50mm ISO Metric ID (inner diameter), a self lubricating bearing liner and a compensated running clearance of 0.0015" per side. ISO Metric - Closed - Square Flanged Center Mount Double sized as if two standard plain linear bearings were joined..
$423.18
Double Plain Linear Bearing, Square Flanged Center Mount, with a 40mm ISO Metric ID (inner diameter), a self lubricating bearing liner and a compensated running clearance of 0.0015" per side. ISO Metric - Closed - Squared Flanged Center Mount Double sized as if two standard plain linear bearings were joined..
$342.41
Double Plain Linear Bearing, Square Flanged Center Mount, with a 50mm ISO Metric ID (inner diameter), a self lubricating bearing liner and a precision running clearance of 0.0005" per side. ISO Metric - Closed - Square Flanged Center Mount Double sized as if two standard plain linear bearings were joined..
$423.18
Double Plain Linear Bearing, Square Flanged Center Mount, with a 30mm ISO Metric ID (inner diameter), a self lubricating bearing liner and a compensated running clearance of 0.0015" per side. ISO Metric - Closed - Squared Flanged Center Mount Double sized as if two standard plain linear bearings were joined..
$188.03
Double Plain Linear Bearing, Square Flanged Center Mount, with a 40mm ISO Metric ID (inner diameter), a self lubricating bearing liner and a precision running clearance of 0.0005" per side. ISO Metric - Closed - Squared Flanged Center Mount Double sized as if two standard plain linear bearings were joined..
$342.41
Double Plain Linear Bearing, Square Flanged Center Mount, with a 30mm ISO Metric ID (inner diameter), a self lubricating bearing liner and a precision running clearance of 0.0005" per side. ISO Metric - Closed - Squared Flanged Center Mount Double sized as if two standard plain linear bearings were joined..
$188.03
Double Plain Linear Bearing, Square Flanged Center Mount, with a 16mm ISO Metric ID (inner diameter), a self lubricating bearing liner and a compensated running clearance of 0.0015" per side. ISO Metric - Closed - Squared Flanged Center Mount Double sized as if two standard plain linear bearings were joined..
$87.74
Double Plain Linear Bearing, Square Flanged Center Mount, with a 20mm ISO Metric ID (inner diameter), a self lubricating bearing liner and a compensated running clearance of 0.0015" per side. ISO Metric - Closed - Square Flanged Center Mount Double sized as if two standard plain linear bearings were joined..
$102.02
Double Plain Linear Bearing, Square Flanged Center Mount, with a 20mm ISO Metric ID (inner diameter), a self lubricating bearing liner and a precision running clearance of 0.0005" per side. ISO Metric - Closed - Square Flanged Center Mount Double sized as if two standard plain linear bearings were joined..
$102.02
Double Plain Linear Bearing, Square Flanged Center Mount, with a 16mm ISO Metric ID (inner diameter), a self lubricating bearing liner and a precision running clearance of 0.0005" per side. ISO Metric - Closed - Square Flanged Center Mount Double sized as if two standard plain linear bearings were joined..
$87.74
Double wide plain linear bearings with a center flange, equipped with the self-lubricating FrelonGOLD® liner, which guarantees maintenance-free and oil-free operation even in harsh conditions like dirt, vibration, and extreme heat. These flanged bearings have a sturdy aluminum alloy housing, are available in metric and JIS sizes (6mm to 60mm) and have ID running clearance options of precision (0.0005" per side) or compensated (0.0015" per side). Optional liners include corrosion-resistant Frelon® J or FDA-compliant Frelon® W. Static loads up to 188,000 N (42,200 lb) are supported.
- Metric and JIS sizing options
- Square Flange Center Mount
- Sturdy aluminum body with Frelon® liner bonded directly to the ID
- FrelonGOLD® is the standard bearing liner. Frelon J and Frelon W are optional
- Self-lubricating for oil free operation
- ID sizes: 6 mm to 60 mm
- Static Load Capacities up to 188,000 N (42,200 lb)
