Double Plain Linear Bearings - Round Flanged, Center Mount

Round center flanged plain linear bearings, double-sized, featuring the self-lubricating FrelonGOLD® liner for maintenance-free performance in demanding environments. These bearings come in metric and JIS sizes (6mm to 60mm) with a durable aluminum body and a centrally located flange. ID running clearance options include precision (0.0005" per side) or compensated (0.0015" per side). Optional liners include corrosion-resistant Frelon® J and FDA-compliant Frelon® W for specialized applications. Static loads of up to 188,000 N (42,200 lb) are supported.

More About Double Plain Linear Bearings - Round Flanged, Center Mount

Ways to Order

Custom Features Get A Quote
Round Shaft Technology - Linear Bearings & Shafting
Download PDF Download PDF Video Video

Double Plain Linear Bearings - Round Flanged, Center Mount

44 products
PRICE
PRODUCT TYPE
UNIT SYSTEM
DIAMETER
No Matches
BEARING PRECISION
BEARING STACK SIZE
BEARING TYPE
LINER MATERIAL
FOR SHAFT MATERIAL
Close filters
Filter
44 products

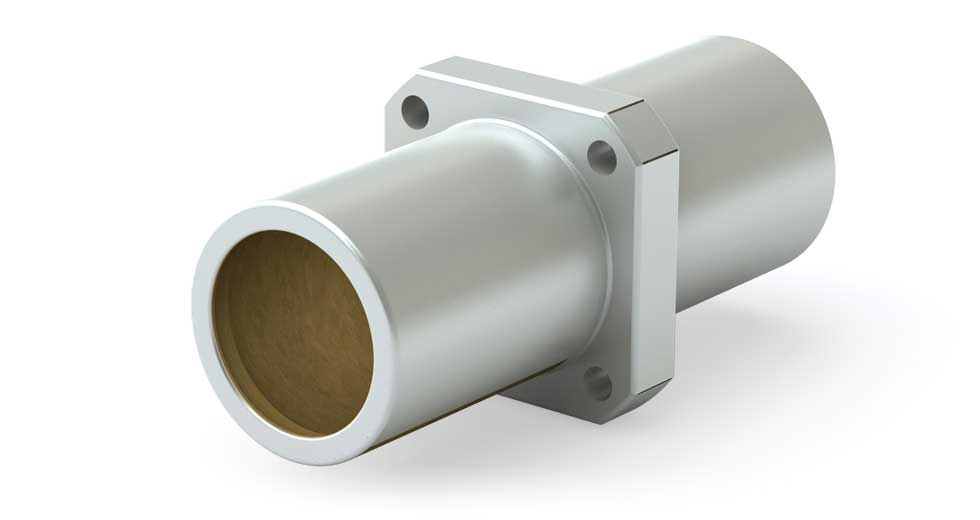

CFPM60C 60mm Double Center Linear Flange Bearing ISO Metric Closed Plain Linear Bearing Spherical 'Self-aligning' I.D. in the housing, Housing With Bearing Included, Compensated running clearance on the I.D.

Plain Linear Bearing CFPM60C 60mm ID - Square Flange Center, Double Wide, Compensated ID

$627.28

Plain Linear Bearing CFPM60C 60mm ID - Square Flange Center, Double Wide, Compensated ID

$627.28
Double Plain Linear Bearing, Square Flanged Center Mount, with a 60mm ISO Metric ID (inner diameter), a self lubricating bearing liner and a compensated running clearance of 0.0015" per side. ISO Metric - Closed - Squared Flanged Center Mount Double sized as if two standard plain linear bearings were joined..
$627.28
CFPMR12 12mm Double Center Linear Flange Bearing ISO Metric Closed Plain Linear Bearing Spherical 'Self-aligning' I.D. in the housing, Housing With Bearing Included, Compensated running clearance on the I.D.

Plain Linear Bearing CFPMR12 12mm ID - Round Flange Center, Double Wide

$75.22

Plain Linear Bearing CFPMR12 12mm ID - Round Flange Center, Double Wide

$75.22
Double Plain Linear Bearing, Round Flanged Center Mount, with a 12mm ISO Metric ID (inner diameter), a self lubricating bearing liner and a precision running clearance of 0.0005" per side. ISO Metric - Closed - Round Flanged Center Mount Double sized as if two standard plain linear bearings were joined..
$75.22
CFPMR08 8mm Double Center Linear Flange Bearing ISO Metric Closed Plain Linear Bearing Spherical 'Self-aligning' I.D. in the housing, Housing With Bearing Included, Compensated running clearance on the I.D.

Plain Linear Bearing CFPMR08 8mm ID - Round Flange Center, Double Wide

$69.46

Plain Linear Bearing CFPMR08 8mm ID - Round Flange Center, Double Wide

$69.46
Double Plain Linear Bearing, Round Flanged Center Mount, with an 8mm ISO Metric ID (inner diameter), a self lubricating bearing liner and a precision running clearance of 0.0005" per side. ISO Metric - Closed - Round Flanged Center Mount Double sized as if two standard plain linear bearings were joined..
$69.46

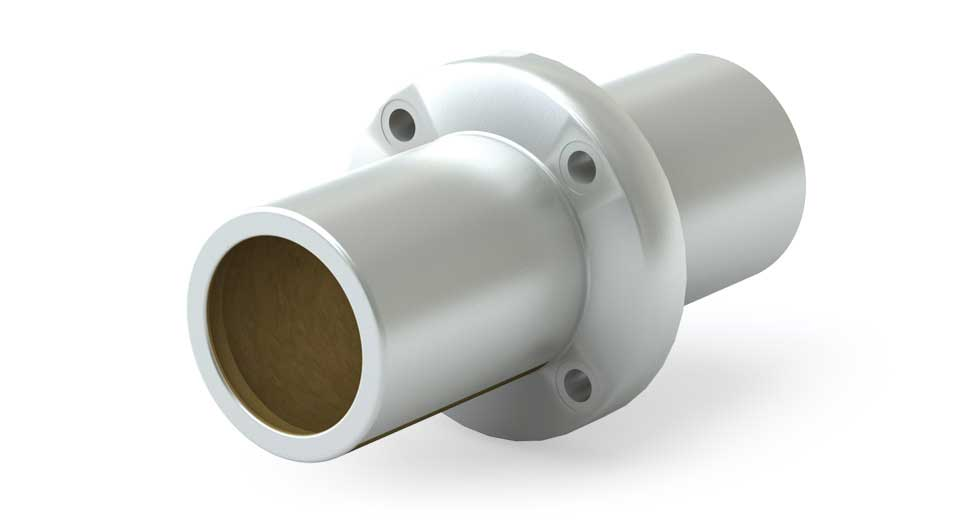

CFPMR08C 8mm Double Center Linear Flange Bearing ISO Metric Closed Plain Linear Bearing Spherical 'Self-aligning' I.D. in the housing, Housing With Bearing Included, Compensated running clearance on the I.D.

Plain Linear Bearing CFPMR08C 8mm ID - Round Flange Center, Double Wide, Compensated ID

$69.46

Plain Linear Bearing CFPMR08C 8mm ID - Round Flange Center, Double Wide, Compensated ID

$69.46
Double Plain Linear Bearing, Round Flanged Center Mount, with an 8mm ISO Metric ID (inner diameter), a self lubricating bearing liner and a compensated running clearance of 0.0015" per side. ISO Metric - Closed - Round Flanged Center Mount Double sized as if two standard plain linear bearings were joined..
$69.46
44 products

Double Plain Linear Bearings - Round Flanged, Center Mount

44 products

Round center flanged plain linear bearings, double-sized, featuring the self-lubricating FrelonGOLD® liner for maintenance-free performance in demanding environments. These bearings come in metric and JIS sizes (6mm to 60mm) with a durable aluminum body and a centrally located flange. ID running clearance options include precision (0.0005" per side) or compensated (0.0015" per side). Optional liners include corrosion-resistant Frelon® J and FDA-compliant Frelon® W for specialized applications. Static loads of up to 188,000 N (42,200 lb) are supported.
