Linear Shafts (Shafting) and Support Rails
Ways to Order
Square Linear Shaft of 1" diameter and a length of 72", made of 304 stainless steel, known for high corrosion resistance. Buffed and polished to provide an excellent running surface for self-lubricating Frelon®J lined square bearing plugs and pads. Part Number PST16-072-000 Bearing Type Stainless Steel Square Shafting Diameter 1"..
$205.47
Square Linear Shaft of 1.5" diameter and a length of 12", made of 304 stainless steel, known for high corrosion resistance. Buffed and polished to provide an excellent running surface for self-lubricating Frelon®J lined square bearing plugs and pads. Part Number PST24-012-000 Bearing Type Stainless Steel Square Shafting Diameter 1.5"..
$63.90
Square Linear Shaft of 1" diameter and a length of 48", made of 304 stainless steel, known for high corrosion resistance. Buffed and polished to provide an excellent running surface for self-lubricating Frelon®J lined square bearing plugs and pads. Part Number PST16-048-000 Bearing Type Stainless Steel Square Shafting Diameter 1"..
$136.98
Pre-drilled aluminum alloy linear support rail designed for seamless compatibility with 40mm pre-drilled linear shafting (sold separately). This 600 mm support rail ensures rigid, continuous backing to eliminate shaft deflection or sag, thus enhancing the performance of linear motion applications. Features & Benefits: Shaft Diameter: 40 mm, tailored for substantial..
$313.93
Pre-Drilled Linear Support Rail of 1000mm length, made for a 30mm diameter linear shaft, sold separately. Cold Stamp manufactured from aluminum in the PBC Linear® factory in Roscoe, IL USA. Use Open Linear Bearings on shafts fused with these support rails. Linear Support Rail only - Shafts sold separately. Pre-Drilled..
$446.81
Linear Shaft made of 440 Stainless Steel and of 3" diameter, 36" length with RC 50 Hardness™, fused onto an aluminum alloy linear rail, designed for open bearing variants of Simplicity® self-lubricating plain linear bearings and ball bearings. The linear rail segment is pre-drilled for mounting, while the shaft is..
$1,761.75
Linear Shaft on Rail - Ceramic-Coated Aluminum SRA48CC-024.000-SL Diameter: 3" Length: 24"
$1,174.50
Ceramic-Coated Aluminum Linear Shaft, Feather-Weight, featuring a 3" diameter and 24" length, fused onto an Aluminum Alloy Linear Support Rail. This assembly is designed for the open variants of the Simplicity® self-lubricating plain slide linear bearings or other plain bearings. The linear rail segment is pre-drilled for easy mounting, while..
$1,174.50
Linear Shaft on Rail - Ceramic-Coated Aluminum SRA24CC-018.000-SL Diameter: 1 1/2" Length: 18"
$292.97
Ceramic-Coated Aluminum Linear Shaft, Feather-Weight, featuring a 1.5" diameter and 18" length, fused onto an Aluminum Alloy Linear Rail. This assembly is designed for the open variants of the Simplicity® self-lubricating plain slide linear bearings or other plain bearings. The linear rail segment is pre-drilled for easy mounting, while the..
$292.97
Linear Shaft End Support Block for a 1.25" diameter shaft
Part Number
NSB20
Diameter
1 1/4"
Shaft Type
Aluminum End Support Block
Hardware not included.
$44.68
Low profile carbon steel support rail for a 40mm shaft, 1000mm in length, crafted from AISI C-1018 steel, with a 40% lower profile than standard rails. Ideal for compact applications, this rail offers a reduced footprint for efficient low shaft support. It features no coating and a length tolerance of..
$0.00
Pre-drilled low profile carbon steel support rail for a 30mm shaft, 400mm in length, crafted from AISI C-1018 steel, with a 40% lower profile than standard rails. Ideal for compact applications, this rail offers a reduced footprint for efficient low shaft support. It features no coating and a length tolerance..
$35.60
Low Support Rail of Carbon Steel for a 25mm Shaft LSRM25PD-1000-SL Length: 1000mm Pre-Drilled
$68.46
Pre-drilled low profile carbon steel support rail for a 25mm shaft, 1000mm in length, crafted from AISI C-1018 steel, with a 40% lower profile than standard rails. Ideal for compact applications, this rail offers a reduced footprint for efficient low shaft support. It features no coating and a length tolerance..
$68.46
Low Support Rail of Carbon Steel for a 20mm Shaft - LSRM20PD-0300-SL Length: 300mm Pre-Drilled
$22.43
Pre-drilled low profile carbon steel support rail for a 20mm shaft, 300mm in length, crafted from AISI C-1018 steel, with a 40% lower profile than standard rails. Ideal for compact applications, this rail offers a reduced footprint for efficient low shaft support. It features no coating and a length tolerance..
$22.43
Low profile carbon steel support rail for a 12mm shaft, 360mm in length, crafted from AISI C-1018 steel, with a 40% lower profile than standard rails. Ideal for compact applications, this rail offers a reduced footprint for efficient low shaft support. It features no coating and a length tolerance of..
$8.10
Low-profile 3" diameter linear shaft fused onto a 24" support rail, delivering high load capacity and precise linear alignment. The shaft is case-hardened carbon steel and it's pre-assembled with a support rail of AISI C-1018 steel. Designed for applications demanding high load carrying capacity and precision alignment. Its construction is..
$608.43
Low profile carbon steel support rail for a 3" shaft, 48" in length, shipped pre-assembled with the shaft made of hardened steel and the support rail crafted from AISI C-1018 steel. The assembly has a 40% lower profile than standard rails. Ideal for compact applications, this rail offers a reduced..
$79.96
Low profile carbon steel support rail for a 3" shaft, 36" in length, crafted from AISI C-1018 steel, with a 40% lower profile than standard rails. Ideal for compact applications, this rail offers a reduced footprint for efficient low shaft support. It features no coating and a length tolerance of..
$59.97
Low profile carbon steel support rail for a 3" shaft, 24" in length, crafted from AISI C-1018 steel, with a 40% lower profile than standard rails. Ideal for compact applications, this rail offers a reduced footprint for efficient low shaft support. It features no coating and a length tolerance of..
$39.98
Carbon Steel Shaft, 2" diameter, 36" length, precision case hardened and ground, paired with a matching low-profile LSR steel support rail, both bored for mounting. This two-piece assembly includes a separate shaft and rail, designed for quick installation by bolting together. Extend the shaft’s lifespan by rotating it 180° when..
$45.72
Carbon Steel Shaft, 2" diameter, 24" length, precision case hardened and ground, paired with a matching low-profile LSR steel support rail, both bored for mounting. This two-piece assembly includes a separate shaft and rail, designed for quick installation by bolting together. Extend the shaft’s lifespan by rotating it 180° when..
$30.48

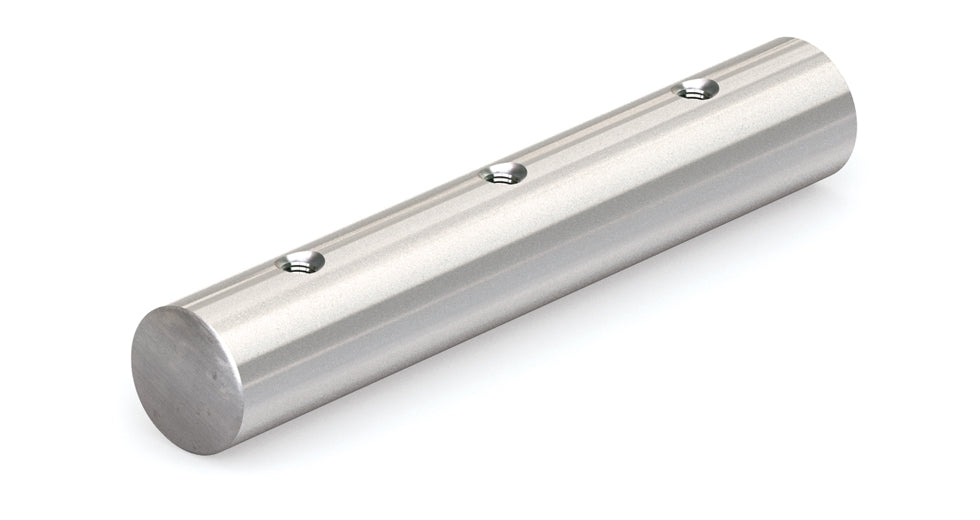

Linear Shafts and Support Rails prevent linear bearing binding from shaft sag in high-load applications. Our shafts, rails, and assemblies are sold in various combinations of 1060 carbon steel (RC60 Hardness™), 440 stainless steel (RC50 Hardness™), and feather-light ceramic-coated aluminum. The shafts—solid or pre-drilled—feature an optimized finish for quick break-in with self-lubricating plain linear bearings, ensuring minimal maintenance and extended machinery lifespan, with straightness tolerances of 0.001"-0.002" per foot in standard or custom lengths. The assemblies, offered as fused shaft-rail units or separate components ready to bolt together, can be mounted vertically or horizontally for versatile, economical performance. Support blocks are also available.
- Material Options: 1060 carbon stee, 440 stainless steel or ceramic-coated aluminum
- Solid or pre-drilled, 0.001"-0.002" per foot straightness, optimized for self-lubricating bearings
- Fused or bolt-together units, mountable vertically or horizontally.
