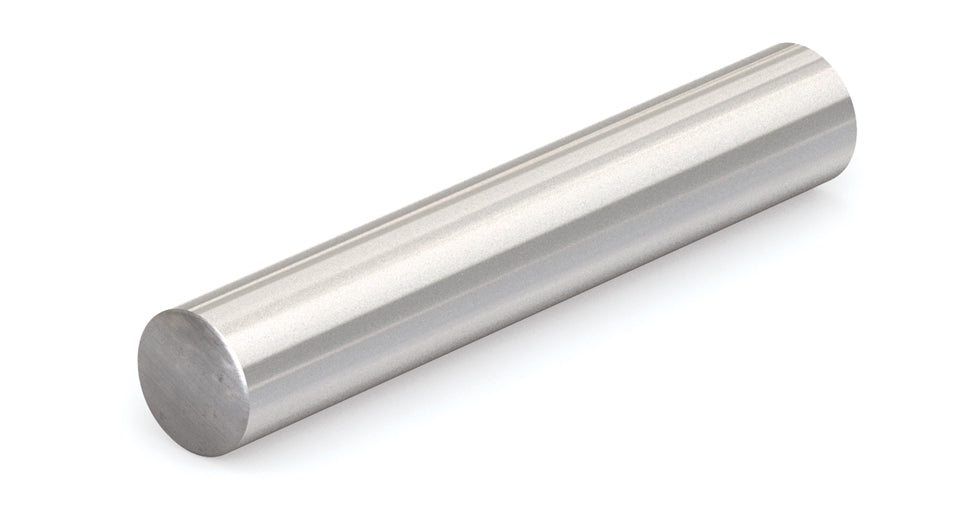

Linear Shaft of Carbon Steel - NIL08-004.000-SL Class L Diameter: 1/2″ Length: 4″
Linear shaft of 1060 carbon steel with 1/2" diameter and 4" length, solid, round and undrilled, featuring RC 60 Plus™ case-hardened steel and Class L diameter tolerance for a controlled bearing fit. Made in the USA by PBC Linear®, this shaft is not tapped, which means it has no internally threaded hole at either end for accepting a screw or bolt. Use the “Configure Custom Features” button below to request end tapping, custom lengths or other shaft modifications. The hardened, optimized running surface is suitable for roller bearing pillow blocks, linear ball bearings, and self-lubricating Simplicity® plain linear bearings.
- 1060 carbon steel round linear shaft, solid and undrilled
- 1/2" diameter and 4" length
- Not tapped, meaning there is no internally threaded hole at either shaft end
- RC 60 Plus™ case-hardened running surface
- Class L diameter tolerance for controlled bearing fit
- Compatible with roller pillow blocks, linear ball bearings, and plain linear bearings
- Made in the USA by PBC Linear®
- Length tolerance: ±0.030"
- Request custom lengths, end tapping, other modifications with the Custom button
Available Lengths:
3D Models
| Type | File | Format | Link |
|---|---|---|---|
| cad | NIL08-004.x_t | SolidWorks >=2006 | Download |
