Lead Screw Linear Actuators with Triangle Nuts and NEMA Motors

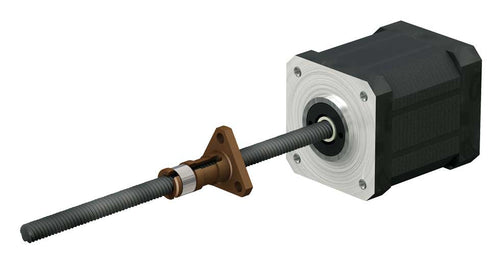

Triangle nut lead screw linear actuator assemblies are motor-driven devices that convert rotary motion into linear movement using a threaded lead screw and triangular nut, factory-integrated with NEMA 08, 11, 14, 17, and 23 motors. The triangular nut geometry improves stability and load distribution for enhanced performance. Assemblies offer 3 to 11 standard lead screw and nut combinations and are available with screw lengths in inch and metric sizes. Standard and anti-backlash nut options are offered, with optional left- and right-end machining. Permanently fixed screws and motors provide accurate factory alignment and compact assembly. These actuators deliver up to 30% more torque and utilize larger thrust and radial bearings within the motor housing for increased thrust capacity and extended service life. Hollow-shaft concentricity minimizes screw runout, and preloaded bearings eliminate axial play.

• Screw lengths available in inch or metric sizes
• Standard or anti-backlash nut options
• Optional left and right end machining
• Permanently fixed screw and motor for accurate alignment
• 30% more torque available
• Larger bearings for increased thrust capacity and longer life
• Hollow shaft concentricity for minimal screw runout
• Preload on bearings to eliminate axial play
