Lead Screw Linear Actuators with Rectangle Nuts and NEMA Motors

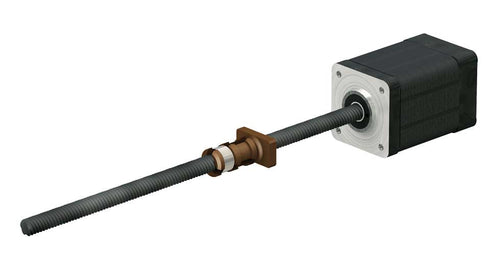

Rectangle nut lead screw linear actuator assemblies are motor-driven devices that convert rotary motion into linear movement using a threaded lead screw and rectangular nut, factory-integrated with NEMA motors. Assemblies are available in NEMA 08, 11, 14, 17, and 23 frame sizes and offer 3 to 11 standard lead screw and nut combinations. Screw lengths are available in inch and metric sizes. Standard and anti-backlash nut options are offered, with optional left- and right-end machining. The permanently fixed screw and motor provide precise factory alignment and a compact assembly. These actuators deliver up to 30% more torque, feature larger bearings for increased thrust capacity and extended service life, and utilize hollow-shaft concentricity to minimize runout. Preloaded bearings eliminate axial play.

• Equipped with NEMA Series motors for high torque, precision, and efficiency
• Five frame size options: NEMA 08, 11, 14, 17, and 23
• 3 to 11 standard combinations of lead screws and nuts available
• Screw length available in inch or metric sizes
• Available with standard or anti-backlash nut
• Optional left and right end machining
• Permanently fixed screw and motor provide accurate alignment
• 30% more torque available
• Larger bearings allow increased thrust capacity and longer life
• Hollow shaft concentricity ensures minimum screw runout
• Preload on bearings eliminates axial play
