IVTAAE V-Wheel Linear Guides
- Max Static Radial Load: 2,000 lbf (8,900 N)
- Max Static Axial Load: 1,250 lbf (5,560 N)
- Max Speed: 10 m/s (394 in/s)
- Max Rail Length: 3,657mm (144 in)
- V-Wheel Roller Bearings: Sealed & Lubricated for Life; raceway lubrication recommended
- Rail Width: 95mm
- Carriage Length: 275mm (10.83 in)
- Carriage Width: 225mm (8.86 in)

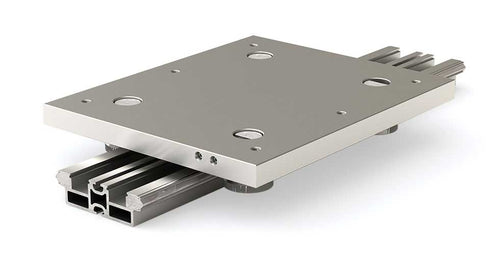

IVTAAE V-Wheel Linear Guides offer the widest, stiffest v-rail option among these Integral-V systems, with separately sold 275mm v-wheel carriages. The 95mm-wide rail mounts on recommended 80×80mm aluminum framing and supports static radial loads up to 8,900 N. Its wide base accommodates screw, belt, and motor integration, while its high moment of inertia makes it well suited for long spans and applications where the rail serves as a structural member.
The precision-machined, anodized aluminum v-rail combines lightweight strength with embedded hardened stainless steel V-races that eliminate race-mounting fasteners and reduce mounting components. SIMO® machined surfaces provide accurate mounting and alignment, while sealed, lubricated-for-life v-wheel rollers deliver smooth, repeatable motion with minimal maintenance. Continuous rail lengths reach 3,657mm, and carriage accessories support a variety of drive configurations and application requirements.
- Precision-machined anodized aluminum rail with hardened embedded 420 stainless steel raceways reduce mounting components by up to 50%
- SIMO® machined for precision qualified rail surfaces within .002"
- Optimized extrusion design provides a large-scale structural member designed for high load capacities
- Accurate and repeatable with smooth and quiet operation
- For custom first hole offset, please configure
Filter
Cut to any length -- enter one to configure it. Maximum 3657 mm.
Products (4)
*Full dimensions shown on individual product pages
| Name | Type | Length (A) mm | Width (B) mm | Dynamic Radial Load (N) | Price | Actions |
|---|---|---|---|---|---|---|
| IVTAAEC-A20A0 | Carriage | 275 | 225 | 10020 | $389.04 | Shop |
| IVTAAER-1600-000 | Rail | 1600 | 95 | - | $412.88 | Shop |
| IVTAAER-1100-000 | Rail | 1100 | 95 | - | $283.86 | Shop |
| IVTAAER-0550-000 | Rail | 550 | 95 | - | $141.93 | Shop |
| Custom Length | Rail | mm | 95 | - | - | Configure |
AAE Linear Guide
|
Recommended Mounting Frame (when mounted to aluminum extrusion) |
||
|---|---|---|
| Frame Size (Typ) | Frame T-Slot Size | Screw Length* |
| 80 x 80 | 8 | M8 x 25 mm SHCS T-Nut Part No. 6100436 |
*Recommended screw length when bolting IVT rail to structural framing via a t-nut.
RAIL
CARRIAGE
ACCESSORIES
Patented Preload Adjustment (Standard) - Side CAM Adjustable
Lubrication Accessories
1. Lube Holder
2. Wheel Cover
3. Wheel Cover and Lube Holder
UNIT DIMENSIONS
Specifications
| Series | # Rollers | Carriage Weight |
Static Load Ratings | Dynamic Load Ratings | Moments of Inertia | Rail Weight |
Max Rail Length |
|||||||||
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| Radial Foy |
Axial Foz |
Roll Mox |
Pitch Moy |
Yaw Moz |
Radial Fy |
Axial Fz |
Roll Mx |
Pitch My |
Yaw Mz |
Iy | Iz | |||||
| kg | N | N | N-M | N-M | N-M | N | N | N-M | N-M | N-M | CM4 | CM4 | kg/m | mm | ||
| IVTAAE | 4 | 3.47 | 8900 | 5560 | 255 | 487 | 778 | 10020 | 6150 | 282 | 538 | 877 | 6.0 | 74.8 | 2.74 | 3657 |
*Weight may vary slightly depending on carriage options.
Fz = Axial capacity
Fy = Radial capacity
Mx, My, Mz = Moment capacities
Conversions
newton (N) x 0.2248 = lbs.
(mm) millimeter x 0.0397 = inch
newton - meter (N-m) x 8.851 = in.-lbs.
