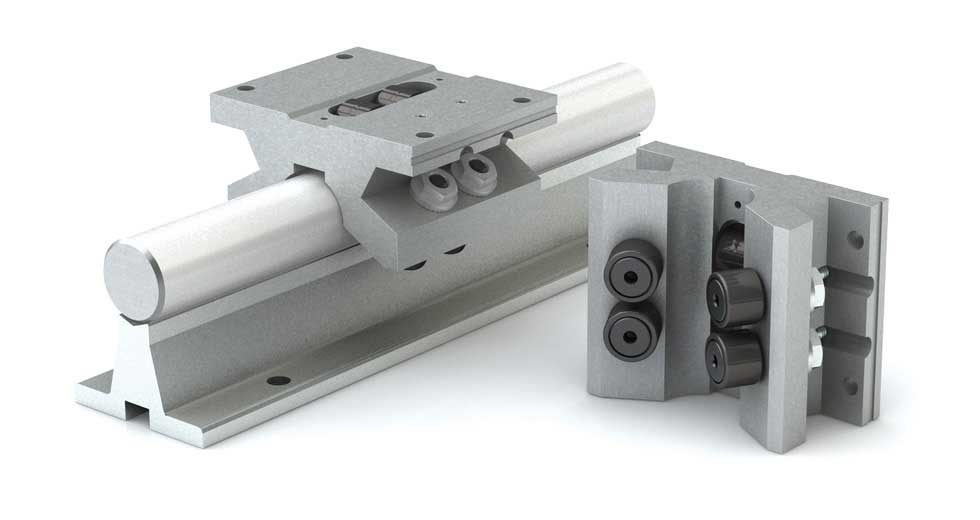

Double Roller Pillow Block Bearing MDPB-25-OPN-S for a 25mm Shaft, Scrapers
Double Cam Roller Bearing Pillow Block for a 25mm diameter shaft, open shelled with scrapers on each end, with two sets of 3 opposing roller bearings while maintaining the standard size profile of a Single Roller Pillow Block (SPB); thus the term "Double." By contrast, a Twin Roller Pillow Block (TWN) also has two sets of 3 opposing roller bearings, but the TWN blocks are double sized as if they were two SPBs fused together.
- Use a floating "F" part number for each opposing normal part number block on a parallel shaft. F-DPB pillow blocks offer flexibility for imperfect alignments
- Scraper mounted to each end made of spring-tempered beryllium copper that conforms to the shaft diameter
- No Top Grease Option
- Double the load capacity of a Single Roller Bearing (SPB) Pillow Block
- A set of opposing roller bearings consists of 1 fixed side roller, 1 eccentric side roller (to account for any misalignment) and a top support roller
- FUBK Series replacement kits provide 1 new roller for each of the 3 rollers in a set
- Order two replacement kits for the 2 sets of this product's opposing bearings
- OPN signifies an open bearing style
