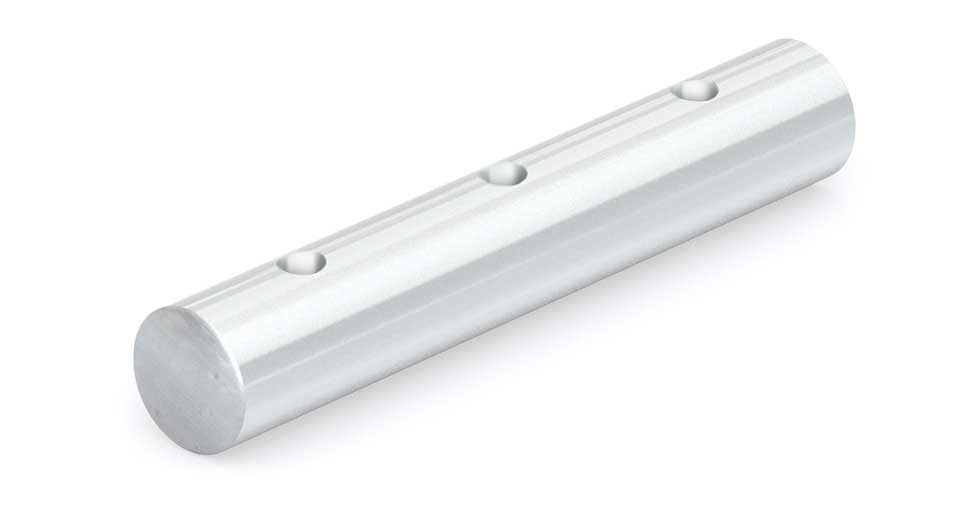

Pre-Drilled Linear Shaft - Stainless Steel - NIPDM50SS-1000-SL Diameter: 50mm Length: 1000mm

Pre-Drilled Linear Shaft of 440 Stainless Steel with a 50mm diameter and 1000mm length, made in the USA by PBC Linear® with Simplicity® RC 50 Plus Hardness™. Hole spacing meets industry standards; however, no tapping has been performed to create threaded holes at the ends. Click Configure CAD and Quote for tapping or custom lengths. Optimized for Simplicity® self-lubricating plain bearings and linear ball bearings,

  • Holes are spaced 200mm apart and start 100mm from the end
  • Length tolerance: +/- 1.6mm
$967.27
Configure Custom Features
Dimensions
Videos
Resources

Product Dimensions

weightwidthlengthheight
34.65 lbs0 in39.37 in0 in
