Pre-Drilled Linear Shaft of 440C Stainless Steel NIPDM12SS-0150-SL Diameter: 12mm Length: 150mm

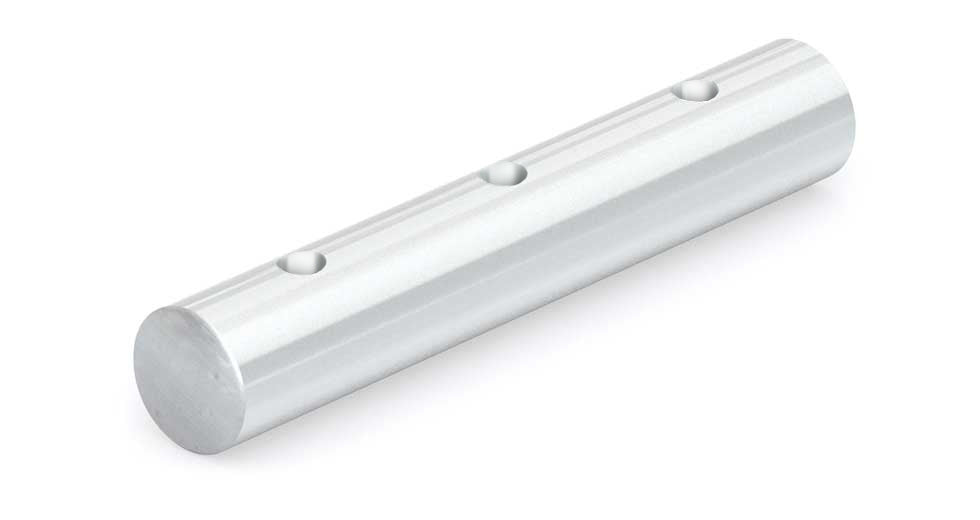

Pre-drilled linear shaft of 440C stainless steel, 12mm diameter, 150mm length. The round shaft features RC 50 Plus™ hardness, Class L diameter tolerance, and an optimized surface finish for Simplicity® self-lubricating plain linear bearings and linear ball bearings. Mounting holes are spaced 120mm center to center, with the first hole centered 60mm from at least one shaft end. This shaft is not tapped, which means it has no internally threaded hole at either end. Made in the USA by PBC Linear®. Use the Custom button to request end tapping, a custom length, or other shaft modifications
- Pre-drilled round 440C stainless steel linear shaft
- 12mm diameter and 150mm length
- RC 50 Plus™ hardened running surface
- Class L diameter tolerance for controlled bearing fit
- Mounting holes spaced 120mm center to center
- First mounting hole centered 60mm from the shaft end
- Not tapped, with no internally threaded hole at either shaft end
- Optimized for Simplicity® plain linear bearings and linear ball bearings
- Use the Custom button for end tapping, custom lengths, or other modifications
- Length tolerance: ±0.8mm
- Made in the USA by PBC Linear®
Available Lengths:
