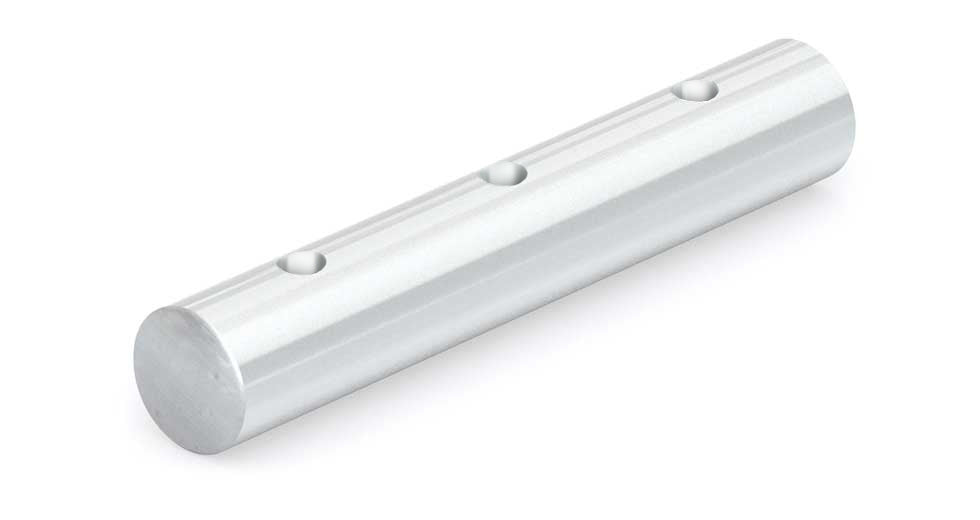

Linear Shaft - NIPDL08SS-006.000-SL 1/2" Ø 440 Stainless Steel Class L Pre-Drilled Length: 6"
440 Stainless Steel Linear Shaft with a diameter of 1/2" and a length of 6" rated Class L, the highest rating for Precision Tolerance and Standards Compliance.
- Also called RC 50 Plus Hardened™ Stainless Steel Shafting
- Shaft is Pre-Drilled -Drill hole spacing is according to industry standards
- NIPDL08 variants have 4 inch spacing beginning 2 inches from the end
- Shaft is Not Tapped - Click Configure CAD & Quote below to request this
- Optimized for Simplicity® plain slide linear bearings and linear ball bearings
- Available in custom lengths
- Length tolerance:
3/16" – 1-1/4" shaft = +/- 0.030"
1-3/8" – 2" shaft = +/- 0.060"
2-1/2" – 4" shaft = +/- 0.125"
