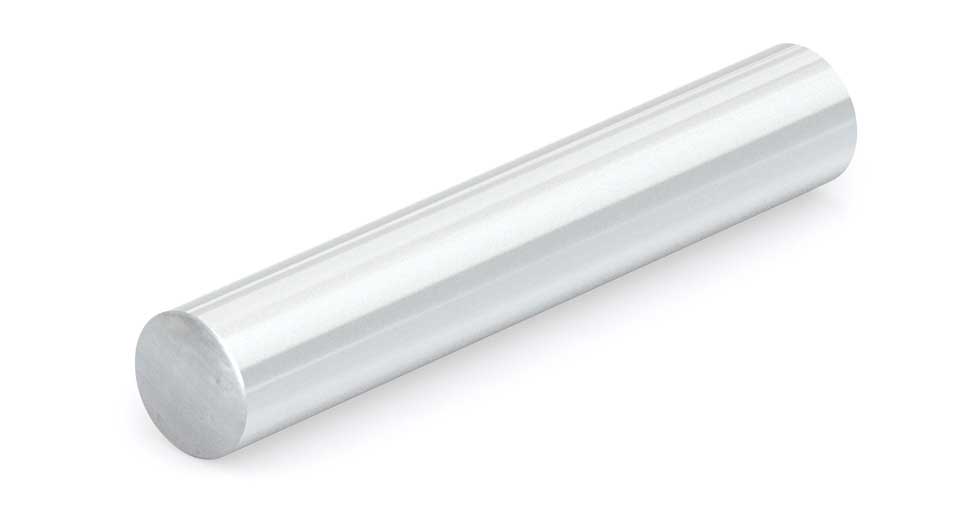

Linear Shaft - 440 Stainless Steel - NIL12SS-024.000-SL Diameter: 3/4″ Length: 24″
440 stainless steel linear shaft, 3/4" diameter and 24" length, solid, undrilled, and made in the USA by PBC Linear® from RC 50 Plus™ hardened stainless steel. The optimized surface finish supports smooth travel with self-lubricating Simplicity® plain linear bearings and linear ball bearings. For standard-spaced pre-drilled mounting holes, order the NIPDL inch-series or NIPDM metric-series version. Non-standard drilling, tapping, and custom shaft lengths are available via the Custom button below.
- Part number: NIL12SS-024.000-SL
- Solid shaft without drilled or tapped holes
- Material: RC 50 Plus™ hardened 440 stainless steel
- Diameter: 3/4"
- Length: 24"
- Length tolerance: +/- 0.030"
- Optimized surface finish for linear ball bearings and plain linear bearings
- Made in the USA by PBC Linear®
- NIPDL inch-series available with standard-spaced pre-drilled holes
- NIPDM metric-series available with standard-spaced pre-drilled holes
- Custom lengths, drilling, and tapping available through the Custom button below
Available Lengths:
