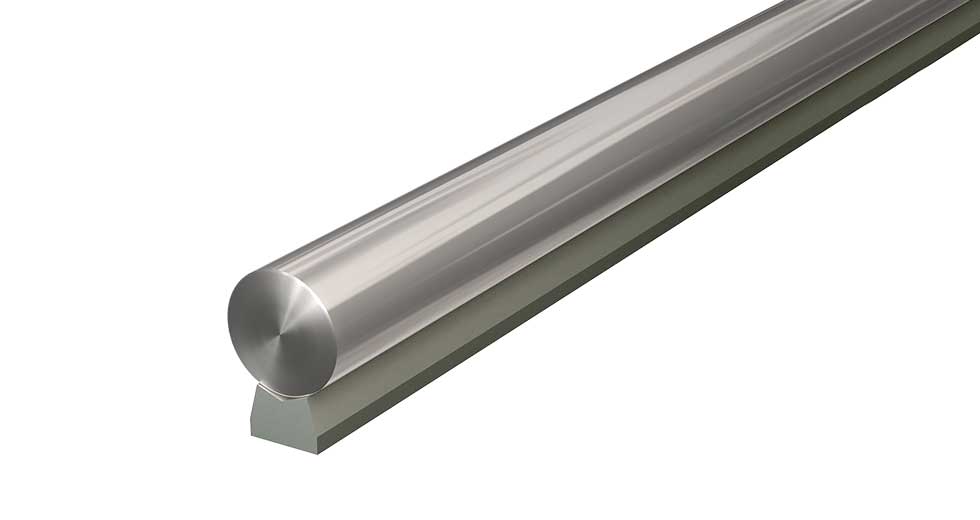

Linear Shaft on Low Profile Rail of Carbon Steel LSRA48-024.000-SL Assembly: Rail and Shaft - Carbon Steel Length: 24″
Low-profile 3" diameter linear shaft fused onto a 24" support rail, delivering high load capacity and precise linear alignment. The shaft is case-hardened carbon steel and it's pre-assembled with a support rail of AISI C-1018 steel. Designed for applications demanding high load carrying capacity and precision alignment. Its construction is optimal for use in both vertical and horizontal mounting positions.
Features & Benefits:
- Shaft Diameter: Robust 3 inches, suitable for high-load and precision-focused applications.
- Rail Length: 24 inches, providing substantial support for a wide range of movements and tasks.
- Mounting Hole Diameter: 0.660 inches, enabling secure and straightforward attachment to machinery or installations.
- Hole Position Y: Standardized at 4 inches, ensuring consistent and reliable support along the length of the shaft.
- Precision case-hardened and ground AISI C-1018 steel shaft ensures high strength, durability, and wear resistance.
- Full-length steel support rails offer rigid, continuous backing to prevent shaft deflection or sag, enhancing overall system performance.
- Pre-drilled configuration allows for instant bolt-down installation, significantly reducing setup time.
- The ability to be end-joined provides versatility for extending support to longer continuous lengths as needed.
- Designed to eliminate binding and improve the smoothness of motion, particularly in demanding operational environments.
