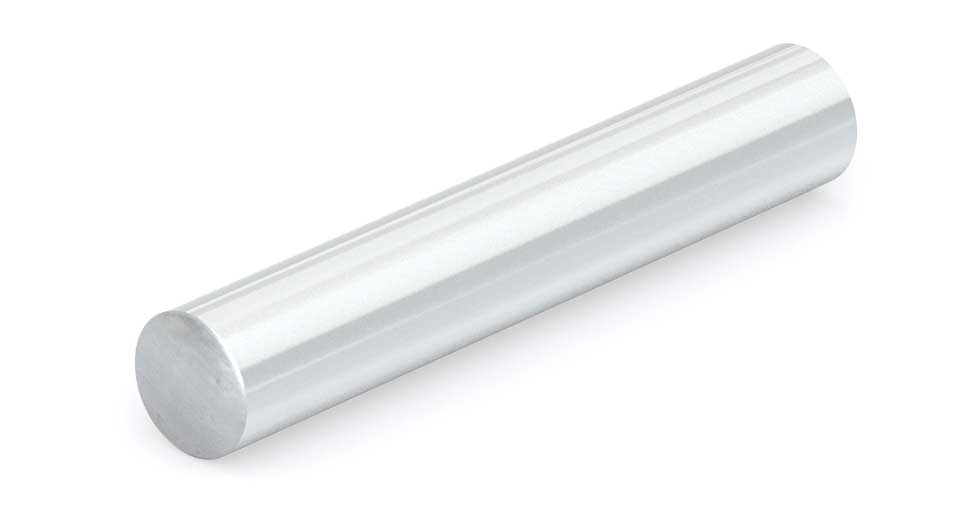

Linear Shaft - 440 Stainless Steel - NIL10SS-012.000-SL Diameter: 5/8" Length: 12"
Linear Shaft made of 440 Stainless steel with a 5/8" diameter and 12" length, rated Class L for Precision Tolerance and Standards Compliance. Made in the USA by PBC Linear® as RC 60 Plus case-hardened steel, the shaft is not drilled nor tapped, but you can click "Configure & Quote" below to order this and/or custom lengths. Use with roller bearing pillow blocks or self-lubricating Simplicity® plain linear bearings or linear ball bearings.
Length tolerance:
- 3/16" – 1-1/4" shaft = +/- 0.030"
- 1-3/8" – 2" shaft = +/- 0.060"
- 2-1/2" – 4" shaft = +/- 0.125"
