Plain Linear Bearing Guide RS-0800-048-000 Two Steel Shafts on Rails - Diameters: 1/2″ Lengths: 48″

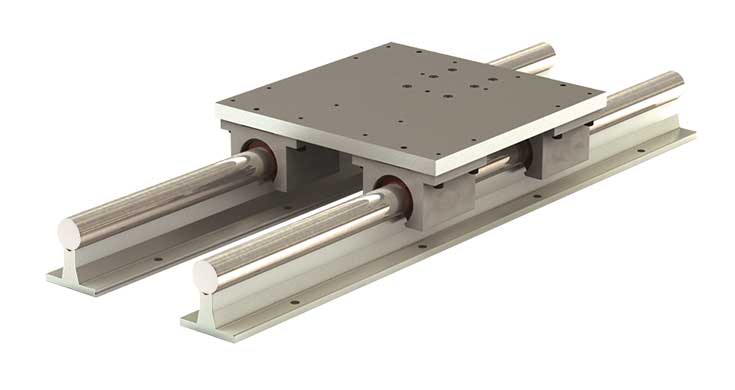

This linear guide is a rail-mounted slide assembly featuring four 1/2″ diameter Simplicity® self-lubricating plain linear bearing pillow blocks. These blocks support a flat-top carriage that moves smoothly along two parallel 48″ long alloy steel shafts, which are secured to pre-drilled steel rails for straightforward installation.
- Parallel Shaft Diameter: 1/2″
- Parallel Shaft Length: 48″
- Linear Bearing Liner: FrelonGold® which is self-lubricating and chemically inert
- Optional liners include Frelon®J for corrosive chemical environments and Frelon®W which is FDA compliant
- Tolerates and dampens vibration - Ensures smooth and quiet operation
3D Models
| Type | File | Format | Link |
|---|---|---|---|
| cad | RS-0800-048.x_t | SolidWorks >=2006 | Download |
