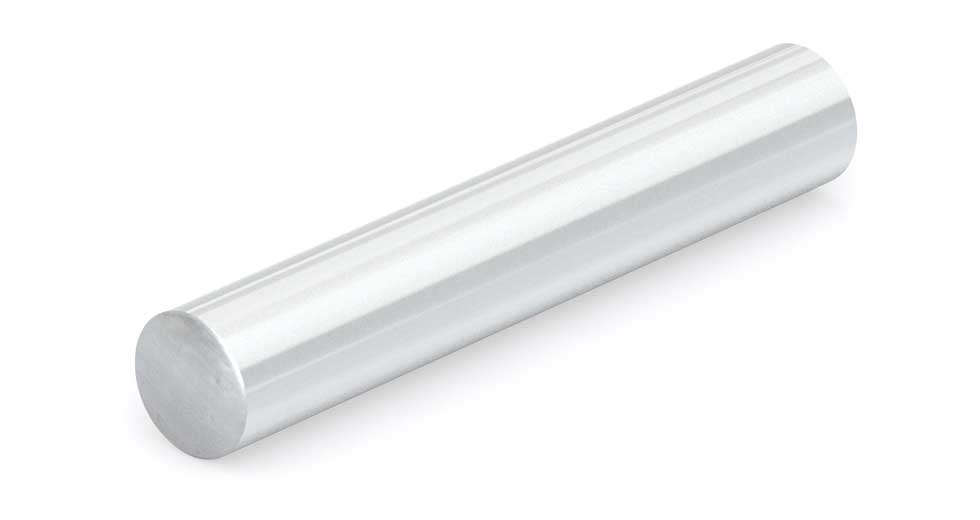

Linear Shaft of 440C Stainless Steel NIL24SS-048.000-SL Diameter: 1 1/2″ Length: 48″
Linear shaft of 440C stainless steel, 1.5" diameter, 48" length. The solid, undrilled round shaft features RC 50 Plus™ hardness, Class L diameter tolerance, and an optimized surface finish for Simplicity® self-lubricating plain linear bearings and linear ball bearings. This shaft is not tapped, which means it has no internally threaded hole at either end. For pre-drilled inch alternatives, choose the NIPDL series. Made in the USA by PBC Linear®. Use the Custom button to request end tapping, a custom length, or other shaft modifications.
- Solid, undrilled round 440C stainless steel linear shaft
- 1.5" diameter and 48" length
- For pre-drilled inch alternatives, choose the NIPDL series
- RC 50 Plus™ hardened running surface
- Class L diameter tolerance for controlled bearing fit
- Neither pre-drilled nor tapped
- No internally threaded hole at either shaft end
- Optimized for Simplicity® plain linear bearings and linear ball bearings
- Use the Custom button for end tapping, custom lengths, or other modifications
- Length tolerance: ±0.060"
- Made in the USA by PBC Linear®
Available Lengths:
3D Models
| Type | File | Format | Link |
|---|---|---|---|
| cad | NIL24SS-048.x_t | SolidWorks >=2006 | Download |
