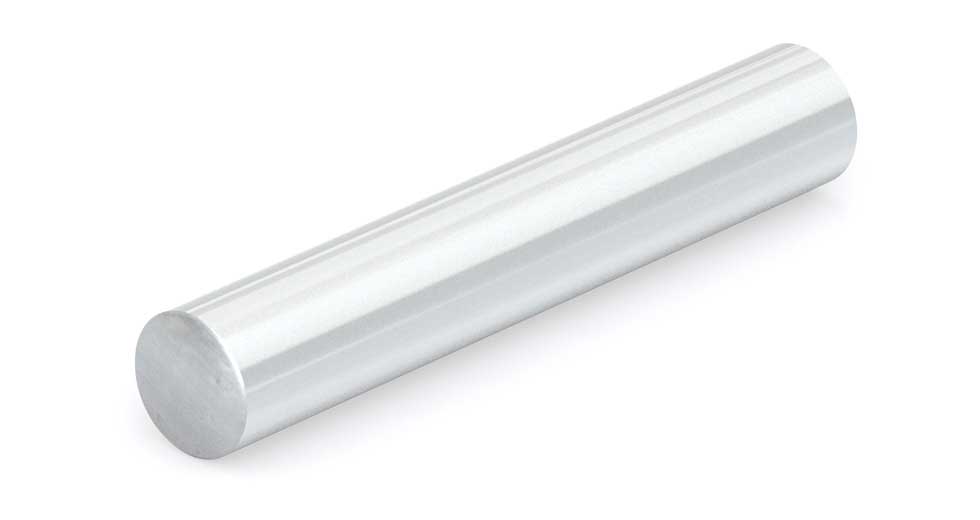

Linear Shaft of 440C Stainless Steel NIL20SS-036.000-SL Diameter: 1 1/4″ Length: 36″
Linear Shaft of 440C Stainless Steel with a 1.25" diameter and 36" length, round, solid and undrilled, featuring an optimized surface finish for self-lubricating Simplicity® plain linear bearings and linear ball bearings. Made in the USA by PBC Linear® as RC 50 Plus™ hardened stainless steel, the shaft is not drilled nor tapped, but you can directly order the NIPDL (inch) or NIPDM (metric) version of this product for standard-spaced pre-drilled holes and/or use the Custom button for non-standard drilling, tapping, or custom shaft lengths.
- Solid, undrilled round 440C stainless steel linear shaft
- 1.25" diameter and 36" length
- RC 50 Plus™ hardened running surface
- Optimized for Simplicity® plain linear bearings and linear ball bearings
- Not drilled or tapped (no threaded holes at either end)
- No internally threaded hole at either shaft end
- For pre-drilled alternatives, choose the NIPDL inch series or NIPDM metric series
- For special drilling, tapping, custom lengths, and other modifications, use the Custom button
- Length tolerance: ±0.030"
- Made in the USA by PBC Linear®
Available Lengths:
