Linear Shaft of 440C Stainless Steel NIL20SS-024.000-SL Diameter: 1 1/4″ Length: 24″
Linear shaft of 440C stainless steel, 1.25" diameter, 24" length. The solid, undrilled round shaft features RC 50 Plus™ hardness and an optimized surface finish for Simplicity® self-lubricating plain linear bearings and linear ball bearings. This shaft is not tapped, which means it has no internally threaded hole at either end. For pre-drilled alternatives with standard hole spacing, choose the NIPDL inch series or NIPDM metric series. Made in the USA by PBC Linear®. Use the Custom button to request non-standard drilling, end tapping, custom lengths, or other shaft modifications.
- Solid, undrilled round 440C stainless steel linear shaft
- 1.25" diameter and 24" length
- For pre-drilled alternatives, choose the NIPDL inch series or NIPDM metric series
- RC 50 Plus™ hardened running surface
- Not drilled or tapped
- No internally threaded hole at either shaft end
- Optimized for Simplicity® plain linear bearings and linear ball bearings
- Special drilling, tapping, custom lengths, other modifications: use Custom button
- Length tolerance: ±0.030"
- Made in the USA by PBC Linear®
Available Lengths:
Share
Customers also purchased

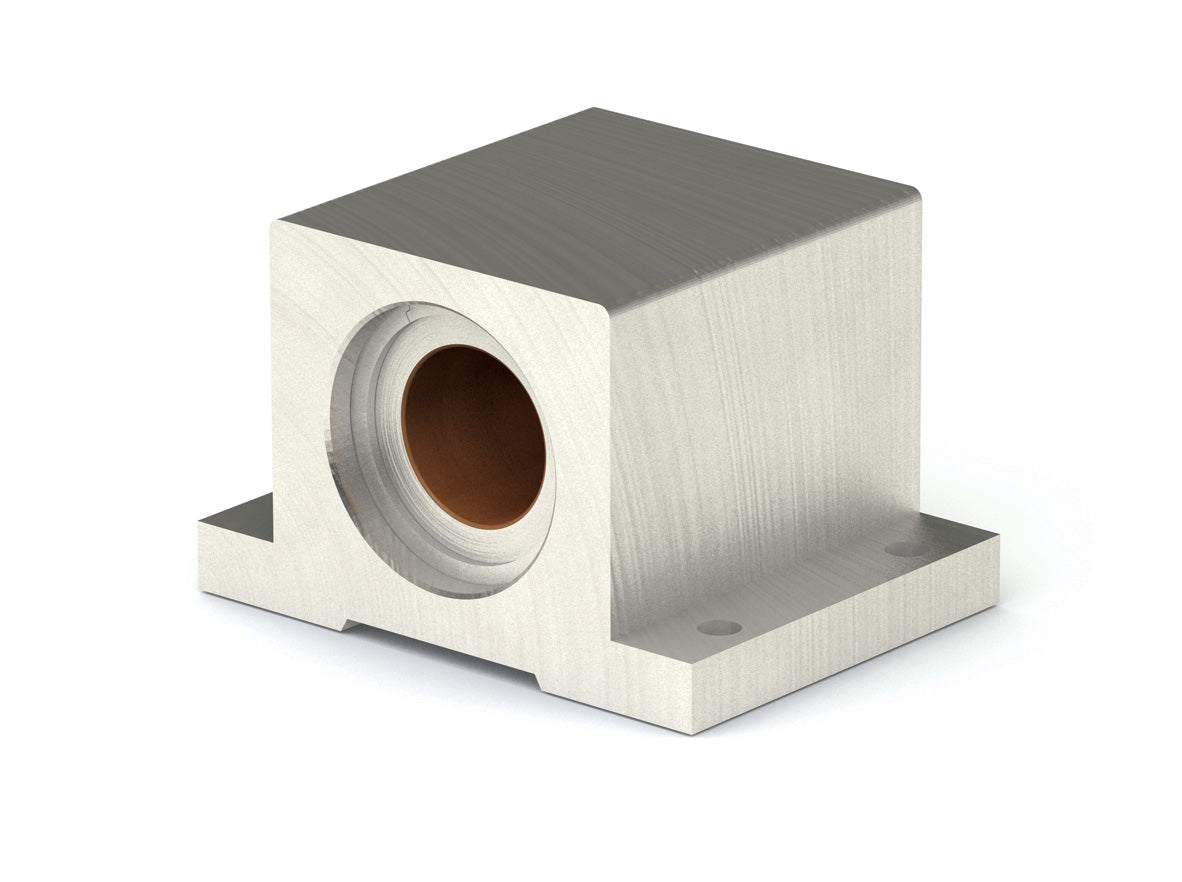

Plain Linear Bearing Stainless Steel Pillow Block, closed, with a 1 1/4" ID and a compensated running clearance of 0.0015 inches per side. A mountable straight-bore stainless steel housing contains a stainless steel, self-aligning bearing with a self-lubricating FrelonJ® liner for maintenance-free operation on 300 series stainless steel. Stainless Steel Bearing..
