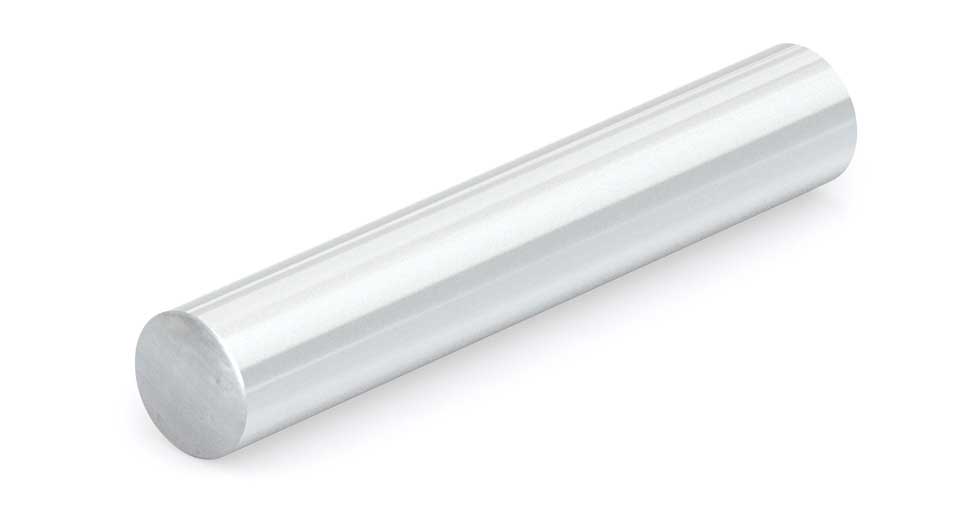

Linear Shaft of 440C Stainless Steel NIL08SS-012.000-SL Diameter: 1/2″ Length: 12″
Linear shaft of 440C stainless steel with 1/2" diameter and 12" length. The solid, undrilled round shaft features RC 50 Plus™ hardness and an optimized surface finish for Simplicity® self-lubricating plain linear bearings and linear ball bearings. This shaft is not tapped, meaning it has no internally threaded hole at either end for accepting a screw or bolt. For pre-drilled alternatives with standard hole spacing, choose the NIPDL inch series or NIPDM metric series. For special drilling, tapping, custom lengths, and other modifications, use the Custom button.
- Solid, undrilled round 440C stainless steel linear shaft
- 1/2" diameter and 12" length
- RC 50 Plus™ hardened running surface
- Optimized for Simplicity® plain linear bearings and linear ball bearings
- Not drilled or tapped
- Tapping creates internal screw threads in a hole at one or both shaft ends
- For pre-drilled alternatives, choose the NIPDL inch series or NIPDM metric series
- For special drilling, tapping, custom lengths, and other modifications, use the Custom button
- Length tolerance: ±0.030"
- Made in the USA by PBC Linear®
Available Lengths:
